ULINE H-1133 Plastic Folded Towel Dispenser Instruction Manual

Table of Contents

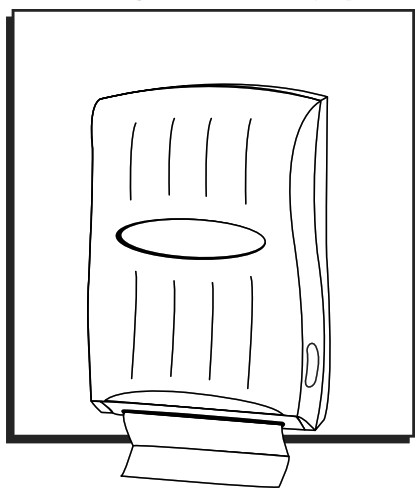

H-1133PLASTIC FOLDED TOWEL DISPENSER

1-800-295-5510uline.com

TOOLS NEEDED

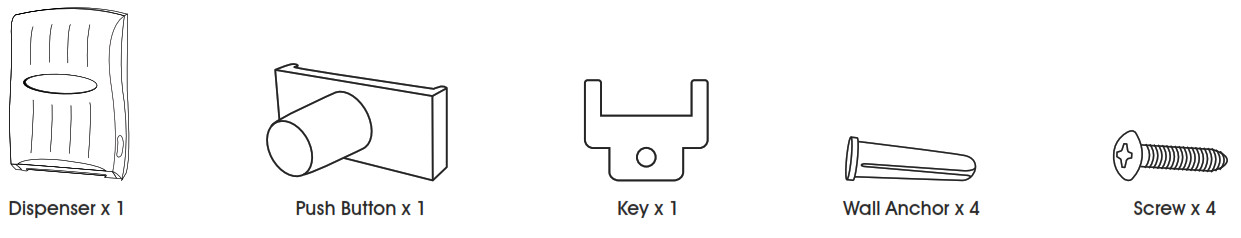

PARTS

OPTIONAL PUSH-BUTTON INSTRUCTIONS

Open dispenser and raise end of lock spring just enough to pop out decorative hole plug. (See Figure 1)NOTE: Do not overstress the lock spring.
Slide push button under lock spring and insert button through hole in door. (See Figure 2)
Release lock spring and close dispenser. (See Figure 2)

DECORATOR STRIP INSTALLATION INSTRUCTIONS

Open cover to expose inside of decorator strip window.

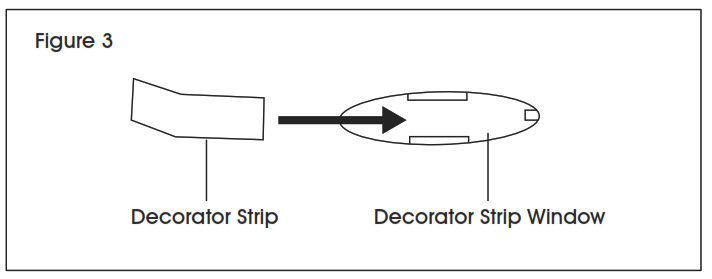

Slide decorator strip into place, making sure the decorator strip is held by the plastic guides. (See Figure 3)
Close cover firmly and lock.

MOUNTING INSTRUCTIONS

NOTE: Recommended mounting height is 48-54″ from the floor to bottom of dispenser.NOTE: Ensure that proper mounting hardware is used for appropriate wall composition as enclosed hardware may not be compatible with your wall surface.

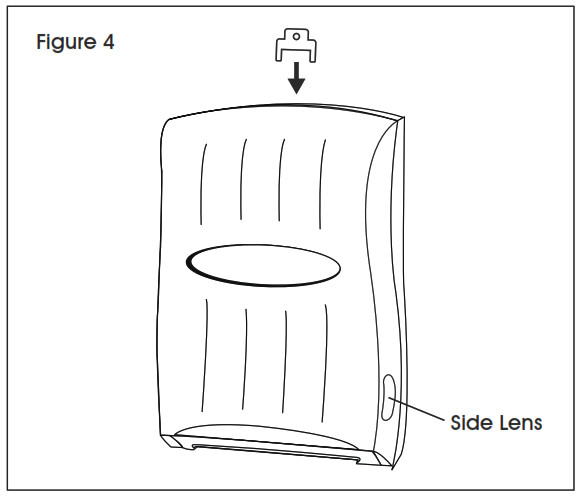

Insert the key into the lock opening on the top of dispenser and push until cover pops open. If push button is installed, gently push the button until the cover opens. (See Figure 4)
Open dispenser cover and hold dispenser to ideal mounting place on wall. (See Figure 5)

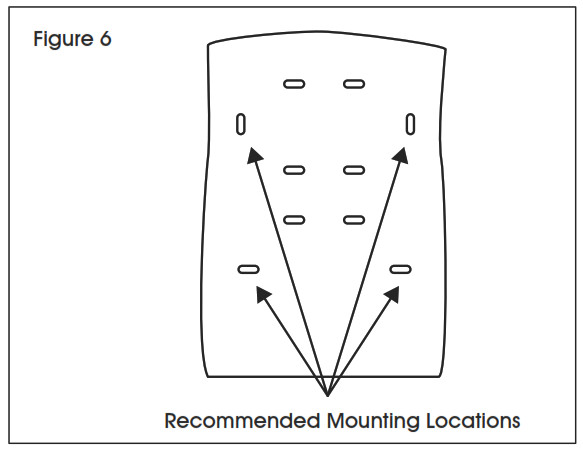

Mark the four holes on the wall where screws will be inserted. (See Figure 6)

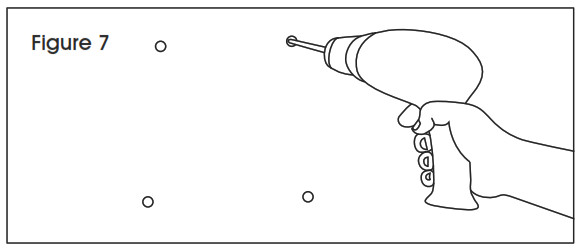

Drill into wall at four marked locations with 1/4″ drill bit. (See Figure 7) Insert wall anchors if necessary.

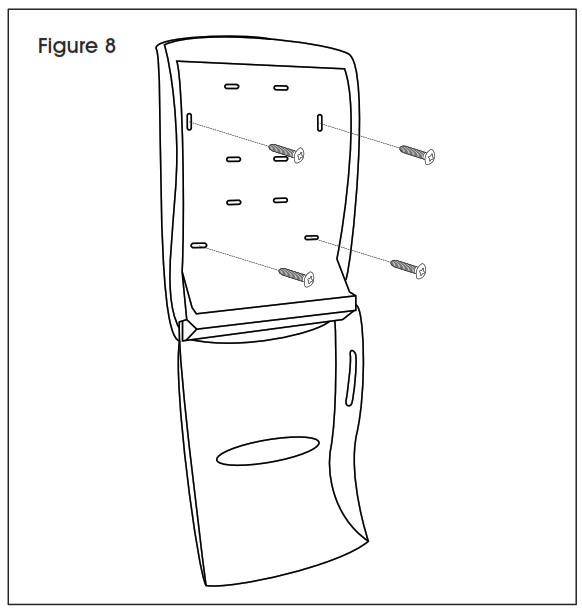

Hold dispenser over previously drilled holes and insert screws. (See Figure 8)

LOADING INSTRUCTIONS

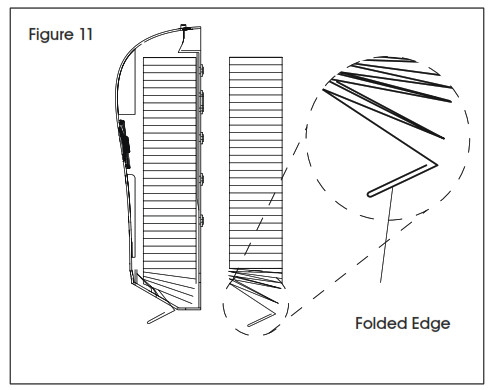

CAUTION: Do not overload dispenser.NOTE: It is recommended that this dispenser be refilled when towels reach the center of the side lens. (See Figure 4)NOTE: Dispenser will accept C-fold, multi-fold, or Scottfold® paper towels.
