ULINE H-1246/H-1247 Extra-Long Tabletop Impulse Sealer User Guide

ULINE H-1246/H-1247 Extra-Long Tabletop Impulse Sealer User Guide

PARTS

OPERATING

  1. Plug the power cord into the outlet and set the timer knob for the thickness of the materials to be sealed. (See Recommended Settings Table)
  2. Put poly bag on the sealing platform and push down the sealing The sealer will automatically control the seal time.
  3. After 1 to 2 seconds, release the sealing

NOTE: The higher the number on the dial, the longer the heat-sealing time.

NOTE: Sealing is complete when the light turns off.

NOTE: Always start on the lowest setting.

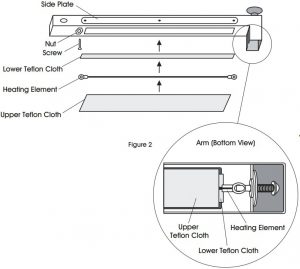

HEATING ELEMENT REPLACEMENT

  1. Unplug unit and remove all three green plastic caps from both ends of the
  2. Loosen one side plate and peel back upper Teflon®
  3. To remove old element wire, hold nut (on hinge end of the sealer) with pliers while turning with a Phillips head Then, release element from post on the opposite end. (See Figure 1)
  4. Remove the lower Teflon® tape strip that was under the Peel off backing from new strip and adhere it to the sealing arm.
  5. Attach new element on hinge end of sealing arm. Insert screw through element eyelet and screw into place.
  6. Remove post with washer and spring from end of the sealing arm (under the handle knob). (See Figure 1a)
  7. Slide spring onto Place washer on post and push washer and spring past open slit.
  8. Attach other end of the new heating element to the open slit on the
  9. Push the washer against the spring so both fit back inside the sealing (See Figure 2)
  10. Replace upper Teflon® cloth over the Tighten side plate.
  11. Replace all three green end Plug in unit.
  • Arm (Side View)Figure 1

  • Arm (Side View)Figure 1a

SPECIFICATIONS

RECOMMENDED SETTINGS
SEALER 1 MIL 2 MIL 3 MIL 4 MIL 6 MIL 8 MIL
H-1246 2 3 3 4 4 5
H-1247 2 3 3 4 4 5
H-4013* 2 3 3 4 4 5
H-4014* 2 3 3 4 4 5
SEALER SPECIFICATIONS
MODEL SOURCE IMPULSE POWER MAX. SEAL LENGTH MAX. SEAL THICKNESS WEIGHT DIMENSIONS
H-1246 120 V 650 W 24″ 8 Mil 24 lbs. 5.5 x 31.5 x 7.5″
H-1247 120 V 850 W 32″ 8 Mil 26 lbs. 5.5 x 38.5 x 7.5″
H-4013* 120 V 650 W 24″ 8 Mil 24 lbs. 5.5 x 31.5 x 7.5″
H-4014* 120 V 850 W 32″ 8 Mil 26 lbs. 5.5 x 38.5 x 7.5″

REPLACEMENT PARTS

MODEL H-1246 H-1247 H-4013* H-4014*
REPAIR KIT H-1248 H-1249 H-1248 H-1249

ADDITIONAL INFORMATION

  • Always keep the sealing platform
  • Do not use water to clean the sealing
  • A short circuit will occur if the bottom teflon cloth strip wears Each time you replace the heating element or the top teflon cover, check the bottom teflon tape for wear and damage.
  • Only use ULINE replacement
  • A worn rubber pressure pad (under the handle) will influence the quality of the seals. The rubber pad should be periodically checked for uneven CAUTION! To provide continued protection against risk of electric shock, connect to properly grounded outlets only.
  • If the bag seal is damaged or broken, it is because the heating time is too Turn the timer knob to a lower number.
  • Close supervision is required when this product is used near

Contact Us

Phone: 1-800-295-5510Web: uline.com
