ULINE H-1595 Tork Xpress Wall-Mount Mini Towel Dispenser Installation Guide

ULINE H-1595 Tork Xpress Wall-Mount Mini Towel Dispenser

TOOLS NEEDED

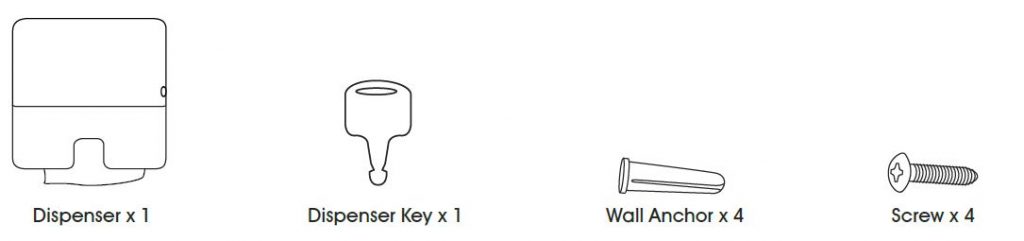

PARTS

USING THE KEY AND OPTIONAL PUSH BUTTON MODE

USING THE KEY

1. To open dispenser while keeping it locked, insert key at position A. (See Figure 1)
2. Turn and hold key clockwise to open dispenser. (See Figure 2)NOTE: Release key back to position A after closing to lock dispenser.

USING PUSH BUTTON MODE

1. Insert key at position A. (See Figure 1)
2. Turn counterclockwise to position B. (See Figure 3)
3. Remove key and push in lock to open dispenser. (See Figure 4)

MOUNTING INSTRUCTIONS

NOTE: Recommended mounting height is 47″ from the floor to the bottom of the dispenser. If using template, recommended mounting height is 47″ from floor to bottom of piece of paper. (See Figure 5)NOTE: Ensure that proper mounting hardware is used for appropriate wall composition as enclosed hardware may not be compatible with your wall surface.

1. Tape mounting template to wall at desired height and ensure that template is level. (See Figure 5)
2. Using a 6mm drill bit, drill into wall about 1½” at each marked screw location on template. (See Figure 6)
3. Remove template from wall. Insert wall anchors (if necessary) into four previously drilled holes. Hold dispenser up to wall so holes in wall and dispenser match up. Insert screws into circular base of top two holes but do not tighten completely. (See Figure 7)
4. Drop dispenser down so screws slide up into narrow slots and tighten screws completely. (See Figure 8)
5. Ensure the dispenser is level by looking at the level bar on the inside of the dispenser. If level, screw in last two screws into the bottom two holes. (See Figure 9)

LOADING INSTRUCTIONS

1. Open the cover by using either the key or push button.
2. Remove wrap from bundle of towels. Load dispenser being careful not to overload.
3. Close dispenser and pull first towel to begin dispensing. (See Figure 10)
