ULINE H-3523 LED Open Sign Instruction Manual
SAFETY INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS:
- This product is for indoor use only. Do not use in damp or wet
- Not for use with light dimmer
- To reduce the likelihood of injury or damage, mount only to a surface that is mechanically
- Do not use extension cords or outlets with inadequate current carrying
- It is recommended to use a surge Power surges ARE NOT covered under warranty for this product.
- Use only adaptor with 120 VAC/60 Hz input and 18 VDC/1,000 mA
- Do not handle adapter or sign with wet
- Disconnect power before handling or
- Do not use liquid cleaners or aerosol Use a dry cloth for cleaning.
- This product is fully assembled and ready to Do not attempt to disassemble or service.
- Do not alter the plug or power supply cord in any

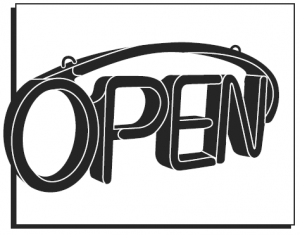

HANGING AND INSTALLATION
- Remove “S” hooks and chains from the parts bag located within the
- Attach the two chains with the “S” hooks through the hanger tabs on the top of the sign.
- Attach the two chains to the ceiling using the appropriate hanging
- Insert barrel plug into power input and plug adaptor into the electrical
- Remove battery tab on remote

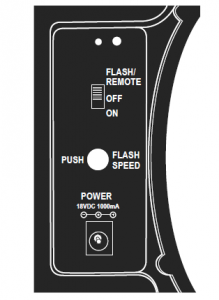

CONTROL PANEL
FLASH/REMOTE – POWER SWITCHSwitch MUST be positioned to Flash/Remote for remote to function.FLASH SPEED CONTROL Push to change speeds (eight speed options).POWER Input Volts: 120VAC Hertz: 60HzOutput Amps: 1000mA Output Volts: 18VDC
WIRELESS REMOTE
WARNING! Flash/Remote – Power Switch on control panel MUST be positioned to Flash/Remote for remote to function. Includes one 27A battery.
| ON/OFF | REMOTE RANGE |
| FLASH/STATIC | 32′ With Antenna Up |
| FLASH SPEED | 12′ With Antenna Down |
WIRELESS REMOTE TROUBLESHOOTING
- Plug in open
- Turn Power Switch to the Flash/Remote position (located on control panel on back of the sign).
- Press recessed button with a pen or paperclip (located above the Power Switch on the back of the sign).
- Continue to press in the recessed Red LED light to the right will illuminate.
- While holding wireless remote close to the control panel on the sign, press any button on the wireless
- Red LED on the back of the sign will turn off, indicating successful
IMPORTANT! Continue to press until process is complete.
