ULINE H-3734, H-6523, Deluxe Stackable Chair With Armrests Installation Guide

ULINE H-3734, H-6523, Deluxe Stackable Chair With Armrests Installation Guide

TOOL NEEDED

• Allen Wrench (included)

PARTS

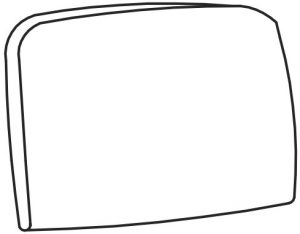

1. Back Cushion x 1

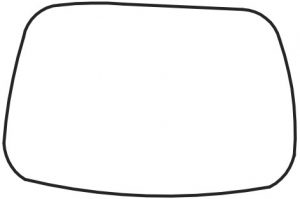

2. Seat Cushion x 1
3. Leg with Armrest x 2

Hardware Kit

• Screw x 4 1/4 x 1½”
• Screw x 4 1/4 x 3/4″
• Screw x 4 1/4 x 3/4″

ASSEMBLY

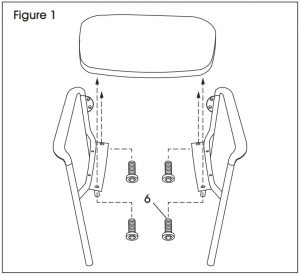

1. Align leg mounting plate with holes on bottom of seat cushion. Use two 1/4 x 3/4″ screws (6) to loosely secure. Repeat on opposite side. (See Figure 1) NOTE: Do not tighten screws until assembly is complete.

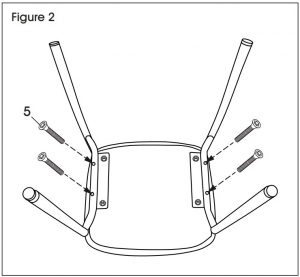

2. Use two 1/4 x 1½” screws (5) to loosely secure legs through Repeat on opposite side. (See Figure 2)

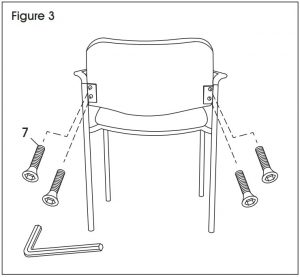

3. Align back cushion with holes in mounting plate. Use two 1/4 x 3/4″ screws (7) to loosely secure. Repeat on opposite side. (See Figure 3) NOTE: Use Allen wrench to tighten all screws.

Contact Us

Phone: 1-800-295-5510Web: uline.com
