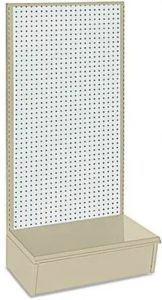

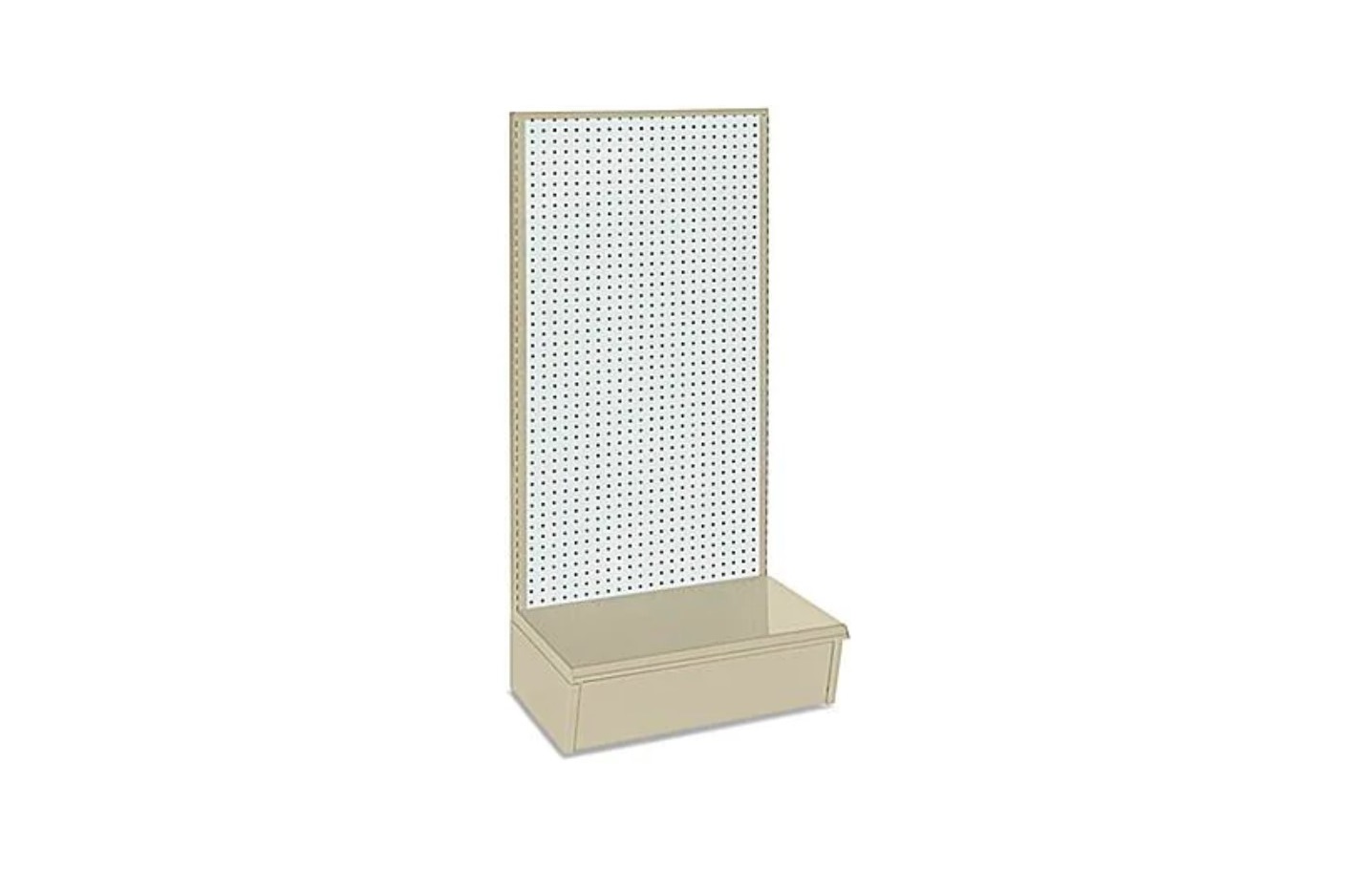

ULINE H-3867 Economy Gondola Shelving Instruction Manual

ULINE H-3867 Economy Gondola Shelving Instruction Manual

ASSEMBLY

  1. Insert front panel into front base sides. (See Figure 1)
  2. Place bottom shelf on the base sides. (See Figure 2)
  3. Insert pegboard back panel into track in uprights and slide down until it rests in channel in the back of the base shelf. (See Figure 3)
  4. To attach top cap, bend tabs down to correct position and place over top of unit. (See Figure 4)
