H-4701 Slimfold Towel Dispenser
H-4701 SLIMFOLDTM TOWEL DISPENSER1-800-295-5510uline.com
TOOLS NEEDED
PARTS
- Remove push button from inside dispenser. (See Figure 1)
- Push button down into opening on top of dispenser. (See Figure 2)
- Turn button to lock it in place. (See Figure 3)
- Push button to open dispenser without requiring key. (See Figure 4)
MOUNTING INSTRUCTIONS
NOTE: Ensure that proper mounting hardware is used for appropriate wall composition, as enclosed hardware may not be compatible with wall surface.
MOUNTING WITH SCREWSNOTE: Recommended mounting height is 52″ from the floor to bottom of dispenser.1. Insert dispenser key into hole in top of dispenser and turn counterclockwise to unlock. (See Figure 5)2. Open dispenser cover and hold dispenser to ideal mounting place on wall. (See Figure 6)
MOUNTING WITH ADHESIVE
3. Mark the four holes on the wall where screws will be inserted using template included in box or by holding the dispenser against the wall. (See Figure 7)
4. Drill into wall at four marked locations with a 1/4″ drill bit. (See Figure 8) Insert anchors into wall (if applicable).
5. Hold dispenser to mounting place and insert screws into previously drilled holes using either a screwdriver or a drill. (See Figure 9)
MOUNTING WITH ADHESIVE
1. Open wet wipe from hardware pack. (See Figure 10)
2. Wipe back of dispenser and wall with wet wipe. (See Figures 11 and 12)
3. Remove backing from adhesive strips. (See Figure 13)

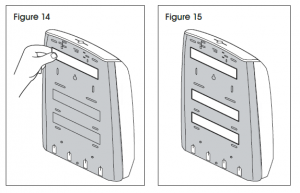

4. Place three strips on back of dispenser and mount on wall. (See Figures 14-15)
LOADING INSTRUCTIONS
1. Remove wrap from bundle of towels. Load towels into dispenser. (See Figures 16-17)
2. Do not compress the towels or overload dispenser. (See Figure 18)

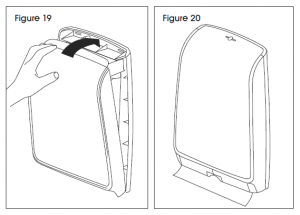

3. Close dispenser and pull first towel out to begin dispensing. (See Figures 19-20)
