ULINE H-5659 4 Gallon Bench Top Poly Corrosive Cabinet
Parts
|
REF |
QTY |
DESCRIPTION |
|
1 |
1 |
Base Panel with Hinge Pins |
|
2 |
1 |
Back Panel with Vents |
|
3 |
1 |
Side Panel |
|
4 |
1 |
Side Panel with Hasp |
|
5 |
1 |
Front Door Panel |
|
6 |
2 |
Shelf Panel |
|
7 |
1 |
Top Panel with Hinge Pins |
|
4 |
Peel and Stick Non-Skid Pads | |
|
1 |
Door Label (Not Shown) |
ASSEMBLY
NOTE: You will have the choice of assembling a left hinge or right hinge door cabinet.NOTE: Images show building of a left hinge door cabinet.

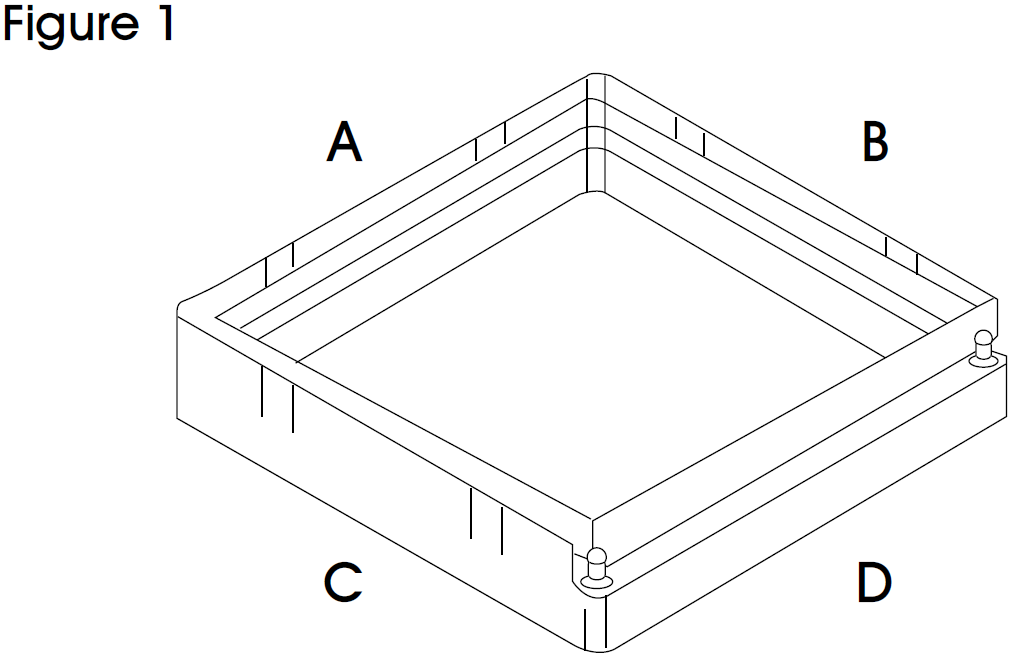

- Place base panel (1) on level surface facing side D.

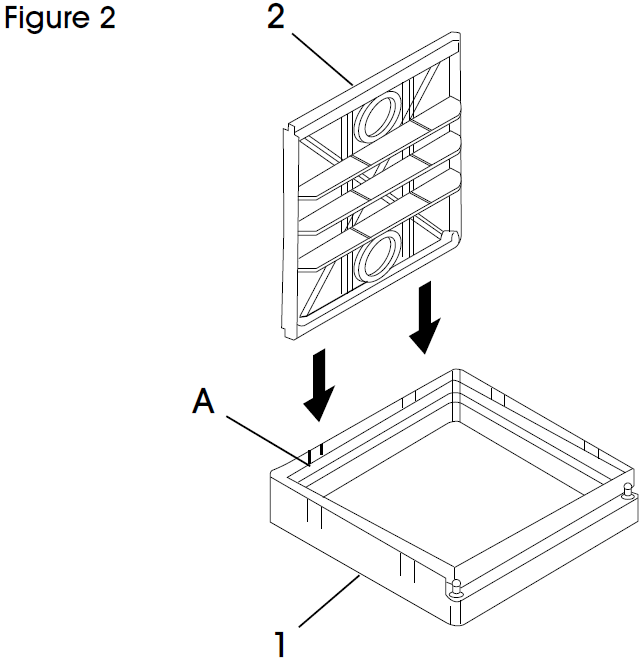

- Slide back panel (2) into slot A and snap into place.
- Left hinge door – Slide side panel (3) into slot C and snap into place.Right hinge door – Slide side panel with hasp (4) into slot C and snap into place.
- Left hinge door – Slide side panel with hasp (4) into slot B and snap into place.Right hinge door – Slide side panel (3) into slot B and snap into place.
- Left hinge door – Place front door panel (5) bottom hole onto left base hinge pin with handle on the right side when facing side D.Right hinge door – Place front door panel (5) bottom hole onto right base hinge pin with handle on the left side when facing D.
- Line up top panel (7) hinge pin with top hole in front door panel (5). Snap top down onto panels (2, 3 and 4).
- Place two shelf panels (6) flat side up onto shelf supports on the back and side panels within the cabinet. One shelf can be placed over sump area.

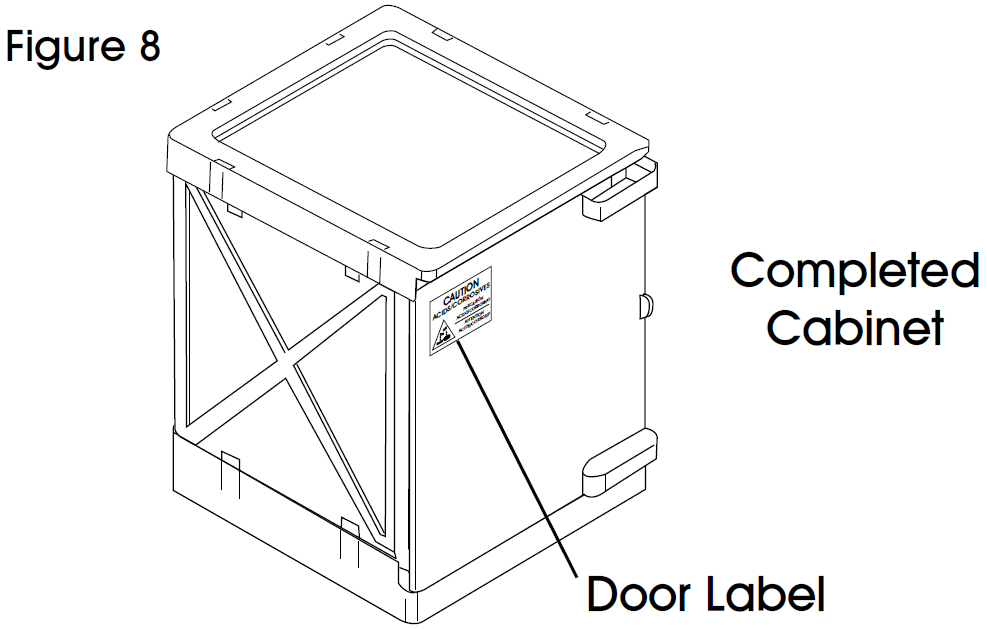

- Peel backing from non-skid pads and place under each corner of base (1). Cabinet is completed.
- (Optional) Peel and stick door label.
