ULINE H-6656 DELUXE SMOKER'S POLE Installation Guide
TOOLS NEEDED
PARTS
ASSEMBLY

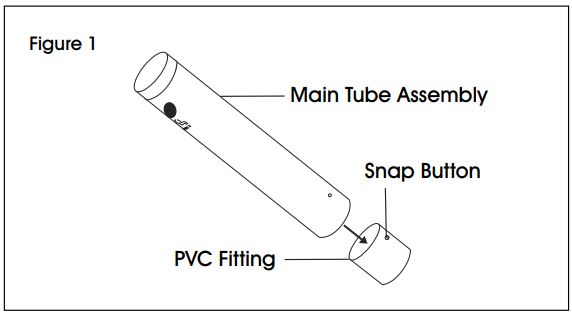

1. Remove PVC fitting located inside the main tube assembly by depressing snap button. (See Figure 1)

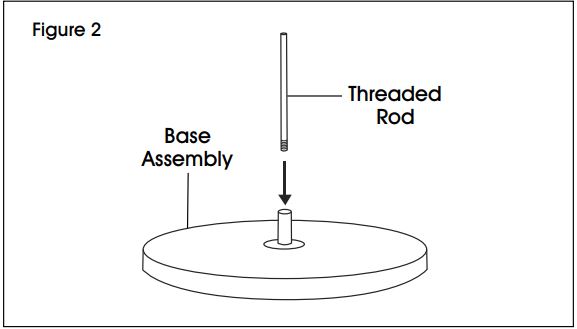

2. Attach threaded rod to base assembly. (See Figure 2)
3. Place PVC fitting over threaded rod and onto base assembly, followed by stepped aluminum plug/disk with stepped edge fitting into the PVC fitting. Place flat washer followed by lock washer onto threaded rod. Use 9/16″ nut to secure entire assembly. (See Figure 3)
4. Slide main tube assembly over assembled unit by lining up snap button with its corresponding hole in main tube assembly. (See Figure 4)
1-800-295-5510uline.com
