ULINE H-6743GR Double Tier Locker 1 Wide-Gray Instructions

ULINE H-6743GR Double Tier Locker 1 Wide-Gray

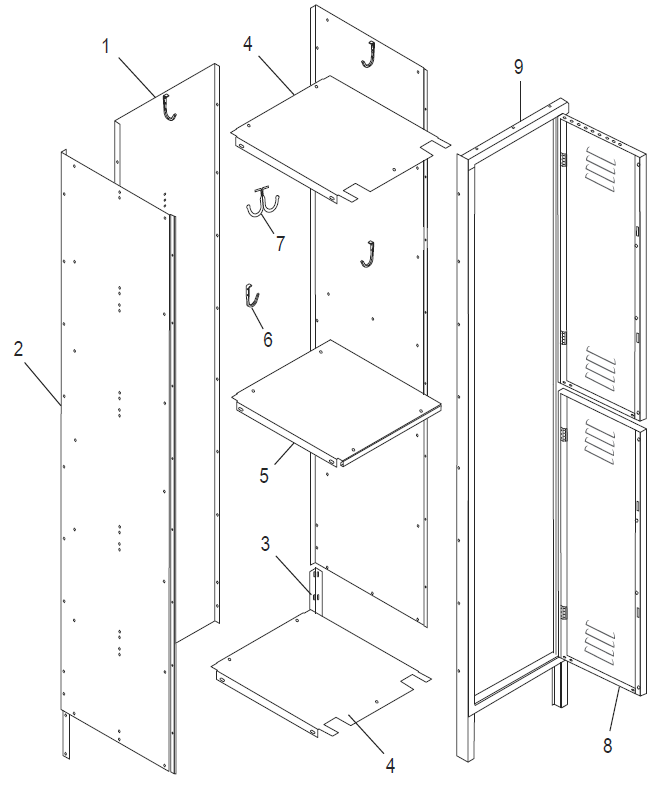

# DESCRIPTION QTY. ULINE PART NO. MFG. PART NO.
1 Back 1 ———– A11227BCJ04-GRAY
2 Side 2 H-4291-GSPQ A11827BCJ03-GRAY
3 Rear Leg 2 H-7148 A11227BCJ10-GRAY
4 Top/Bottom Shelves 2 ———– A11827BCW05-06-GRAY
5 Shelf 1 H-4289G-SHLF A11827BCW07-GRAY
6 Single Coat Hook 6 H-4290-SNGHK 018-YGZ21
7 Double Coat Hook 2 H-4290-DBLHK 018-YGZ060
8 Locker Door 2 H-4290GRDOOR 018-AD21227BCH02-GRAY
9 Door Frame Assembly 1 ———– 12-78HH2MMK-GRAY
10 Leveling Foot with Hardware 4 H-5997 018-DMGTZJ
  Hardware Pack (Not Shown) 1 H-4291-HRDW ———–
  Latch Bar (Not Shown) 1 H-4290-LBAR A21227BCH12
  Latch (Not Shown) 1 H-4289-LATCH 018-YGZ021
