ULINE Heavy Duty Tape Dispenser User Guide

ULINE Heavy Duty Tape Dispenser User Guide

PARTS

INSTRUCTIONS

1. Place dispenser on flat surface. Push tape roll fully onto tape wheel. Be sure tape unwinds with sticky side down. (See Figure 1)
2. Unroll 5-6 inches of tape (sticky side down) and thread between rubber roller and metal loading gate. (See Figure 2)

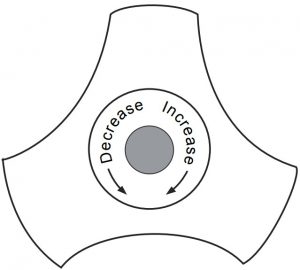

3. Pull tape over rubber roller allowing tape to unroll freely off tape wheel. (See Figure 3) To unwind tension, see Figure 4.
4. Start desired depth on the side of the box. (See Figure 5, A)
5. Glide dispenser along the carton seam – smoothing roller automatically presses tape to the package. (See Figure 5, B)
6. Continue down the opposite end to desired length. In one motion, tilt dispenser forward so tape pressing wiper stops rolling tape, serrated blade cuts tape and wiper smoothes the tape end. (See Figure 5, C)
