ULINE Round Picnic Table User Guide

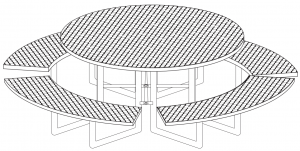

ULINE Round Picnic Table

TOOLS NEEDED

PARTS

ASSEMBLY

1. Verify all parts are present before beginning. Hardware is located in a white box.
2. Flip the tabletop upside down. Take one leg at a time and loosely attach the end of the leg to the tabletop using one bolt, two washers and one nut.The leg braces are an inside mount. The legs are labeled left and right. Match the legs to the left and right markings on the underside of the table. (See Figure 1)
3. Insert the cross brace with the umbrella holder facing upward and loosely bolt to the corresponding corners using one bolt, two washers and one nut. (See Figures 2a-b)
4. Flip the table upright and loosely attach the four bench seats to the legs using two hex head bolts, two nuts and four washers per leg. (See Figure 3)
5. Ensure the tabletop and bench seats are level, then tighten each bolt, finishing with the cross brace.

NOTE: H-2300 mounting hardware is sold separately.

1-800-295-5510uline.com
