SAFETY INSTRUCTIONS & WARNINGS
Before using, read this manual carefully and make sure you have understood all the warnings, instructions, and controls.
To reduce the risk of electrical shock, do not use in rain. Store indoors.
WARRANTYWe take pride in producing a high-quality, durable product. This product carries a limited two (2) year limited warranty against defects in workmanship and materials from the date of purchase under normal household use. If the product is to be used for commercial, industrial or rental use, a 90-day limited warranty will apply. Warranty does not apply to defects due to direct or indirect abuse, negligence, misuse, accidents, repairs or alterations, and lack of maintenance. Please keep your receipt as proof of purchase. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state or province to province.
IMPORTANT!CHECK THAT THE VACUUM CLEANER HAS NOT BEEN DAMAGED IN SHIPMENT, AND ALL ACCESSORIES ARE INCLUDED. READ THE OPERATOR’S MANUAL COMPLETELY BEFORE ATTEMPTING TO OPERATE THIS UNIT. SAVE THESE INSTRUCTIONS FOR YOUR FUTURE REFERENCE.
IMPORTANT SAFETY INSTRUCTIONS
Read and understand all instructions in this manual and all labels on the ash vacuum before operating. Safety is a combination of common sense, staying alert, and knowing how your vacuum works. Use this ash vacuum only as described in this manual. To reduce the risk of personal injury or damage to your ash vacuum, use only recommended accessories.
WARNING:
- FOR HOUSEHOLD USE ONLY.
- SAVE THIS MANUAL FOR FUTURE REFERENCE.
WARNING:
- DO NOT VACUUM UP SOOT.
- ONLY VACUUM UP ASHES OF ADMISSIBLE COMBUSTIBILITY.
- DO NOT VACUUM UP HOT, BURNING, OR RED HOT OBJECTS (E.G. CIGARETTES, CHARCOAL, ASHES)
- THE TEMPERATURE OF THE VACUUMING MATERIAL MUST BE BELOW 100°F (40°C). IF IT EXCEEDS 100°F (40°C), THERE IS A RISK OF FIRE.
- CAUTION: NEVER USE THIS PRODUCT FOR VACUUMING LIQUIDS. ONLY USE THIS UNIT TO VACUUM DRY DUST MATERIAL!
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
- DO NOT RUN VACUUM UNATTENDED.
- DO NOT VACUUM OR USE THIS ASH VACUUM NEAR FLAMMABLE LIQUIDS, GASES, OR EXPLOSIVE VAPORS LIKE GASOLINE OR OTHER FUELS, LIGHTER FLUIDS, CLEANERS, OIL-BASED PAINTS, NATURAL GAS, HYDROGEN, OR EXPLOSIVE DUST LIKE COAL DUST, MAGNESIUM DUST, GRAIN DUST, OR GUN POWDER. SPARKS INSIDE THE MOTOR CAN IGNITE FLAMMABLE VAPORS OR DUST.
- DO NOT VACUUM ANYTHING THAT IS BURNING OR SMOKING, SUCH AS CIGARETTES, MATCHES, OR HOT ASHES.
- KEEP CORD AWAY FROM HEATED SURFACES.
- DO NOT EXPOSE TO RAIN. STORE INDOORS.
- DO NOT UNPLUG BY PULLING ON THE CORD. TO UNPLUG, GRASP THE PLUG, NOT THE CORD.
- DO NOT USE WITH DAMAGED CORD, PLUG, OR OTHER PARTS.
SAFETY INSTRUCTIONS & WARNINGS
- IF THE APPLIANCE IS NOT WORKING AS IT SHOULD, HAS MISSING PARTS, HAS BEEN DROPPED, DAMAGED, LEFT OUTDOORS, OR DROPPED INTO WATER, RETURN IT TO A SERVICE CENTER.
- HANDLE, CLOSE A DOOR ON CORD, OR PULL CORDAROUND SHARP EDGES OR CORNERS.
- DO NOT RUN OVER THE CORD.
- DO NOT HANDLE PLUG OR THE ASH VACUUM WITH WET HANDS.
- TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUSTS, DO NOT VACUUM TOXIC MATERIALS.
- DO NOT USE OR STORE NEAR HAZARDOUSMATERIALS.
- DO NOT USE THIS VACUUM WITH A TORN FILTER OR WITHOUT THE FILTER INSTALLED.
- DO NOT ALLOW IT TO BE USED AS A TOY. CLOSE ATTENTION IS NECESSARY WHEN USED BY OR NEAR CHILDREN.
- TO REDUCE THE RISK OF INJURY FROM ACCIDENTAL STARTING, UNPLUG THE POWER CORD BEFORE CHANGING OR CLEANING THE FILTER.
- DO NOT LEAVE THE VACUUM UNATTENDED WHEN PLUGGED IN. UNPLUG FROM OUTLET WHEN NOT IN USE AND BEFORE SERVICING.
- THE USE OF THE VACUUM CAN RESULT IN FOREIGN OBJECTS BEING BLOWN INTO THE EYES. ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA CSAZ94.3) WHEN OPERATING A VACUUM.
- TURN OFF THE ASH VACUUM BEFORE UNPLUGGING.
- DO NOT PUT ANY OBJECT INTO VENTILATION OPENINGS. DO NOT VACUUM WITH ANY VENTILATION OPENINGS BLOCKED; KEEP FREE OF DUST, LINT, HAIR, OR ANYTHING THAT MAY REDUCE AIRFLOW.
KEEP HAIR, LOOSE CLOTHING, FINGERS, AND ALL PARTS OF THE BODY AWAY FROM OPENINGS AND MOVING PARTS.ATTENTION: vacuuming materials, which appear to have cooled down, may still be very hot inside. Hot ash particles may ignite again with airflow. Wait until the fire is extinguished and the ashes have cooled down before you begin with the cleaning. It is not recommended to quickly extinguish the fire with water. Please make sure that ovens are cold before you vacuum to clean ovens. Temperature exceeding 100°f (40°c) may damage the vacuum cleaner and the components included. Continuously check tubes, ash filters, and vacuum cleaners for excessive temperatures during the vacuum cleaning. If you notice a temperature rise, switch off the vacuum cleaner immediately. Disconnect the vacuum cleaner from the power outlet and remove the filter. Remove the vacuumed material from the ash filter. Caution: in case of excessive temperatures, the tubes, the ash filter, or the vacuum cleaner may be damaged. Completely empty the vacuum cleaner and the ash filter in a safe area after the vacuum cleaning. Let both appliances (vacuum cleaner and ash filter) cool down under supervision.
WARNING!FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE OPERATOR’S MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC, FLAMMABLE OR OTHER HAZARDOUS MATERIALS. DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.
CAUTION:
- TO REDUCE THE RISK OF ELECTRIC SHOCKUN PLUG BEFORE CLEANING OR SERVICING.
- DO NOT USE WITHOUT FILTERS IN PLACE.
- TO REDUCE THE RISK OF INJURY FROM MOVING PARTS- UNPLUG BEFORE SERVICING.
| Specifications | |
| Voltage/Hz: | AV110-120V 60Hz |
| Current: | 9A |
INTRODUCTION
EXTENSION CORDSWhen using an extension cord with your Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the Ash Vacuum, make sure the power cord and extension cord are in good working conditions. Make repairs or replacements before using the vacuum cleaner. Only use extension cords that are rated for outdoor use.
| Length of Extension Cord | ||||
| 110V-120V | 110V-120V | 25 Feet(7.5M) | 50 Feet(15.25M) | 100 Feet(30.5M) |
| Amps | A.W.G. Wire Size | |||
| 0-6 | 18 | 16 | 16 | 14 |
| 10-Jul | 18 | 16 | 14 | 12 |
| 12-Nov | 16 | 16 | 14 | 12 |
| 13-16 | 14 | 12 | Not Recommended |
ASSEMBLY INSTRUCTIONS

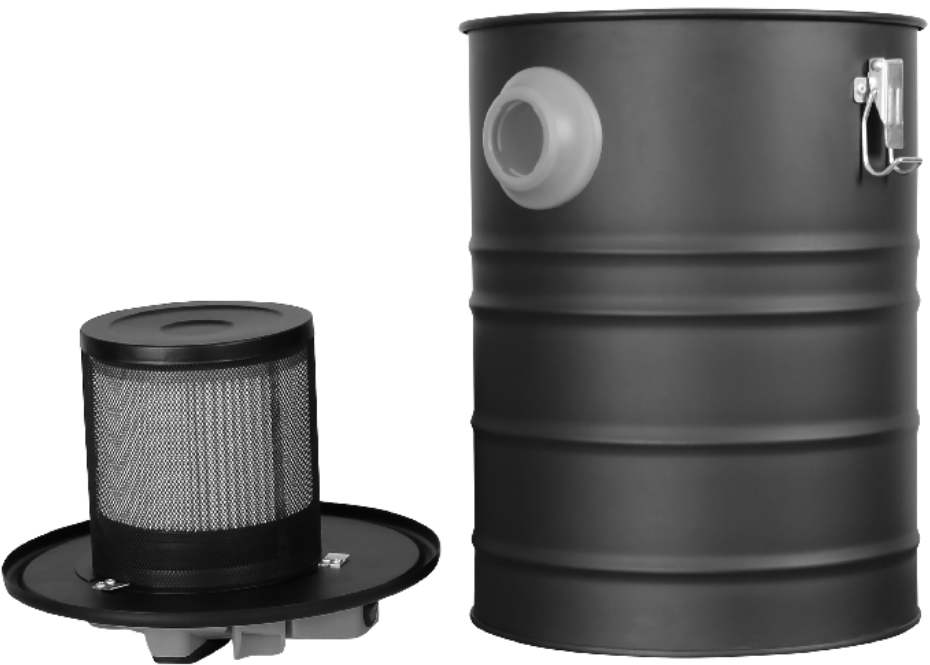

GETTING TO KNOW YOUR ASH VACUUM
| A. Power Head Lid |
| B. Handle |
| C. Power switch |
| D. Crevice Tool |
| E. Cartridge Filter |
| F. Metal Nozzle |
| G. Filter Screen |
| H. Flexible Hose |
| I. Pre-Filter |
| J. Vacuum Port |
| K. Container |
| L. Latches |
Replacement Parts: 892849, AVPKTo order parts:Call 1-800-750-2723 Ext 5051 orEmail to: [email protected]
IN ORDER TO MAINTAIN A WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL MANUFACTURERS PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM THE APPLIANCE MANUFACTURER. THE USE OF THIRD-PARTY COMPONENTS WILL VOID THE WARRANTY.
INITIAL ASSEMBLY
- Remove the Ash Vacuum from the box.

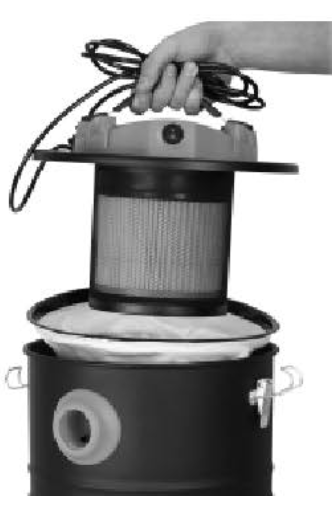

- Unlock the latches and remove the powerhead lid.
- Remove the contents from inside the container and make sure you have all the parts listed in the “Getting To Know Your Ash Vacuum” section of this manual.
- Place the pre-filter over the tanks as previously installed. Replace the power head lid on the container and secure the lid with the latches.
- Insert the locking end of the hose onto the vacuum port and rotate 1/4 turn counter-clockwise.
- Insert the metal nozzle onto the other end of the hose.
- Plug in the power cord and turn the vacuum cleaner power switch on.
- Run the unit for 30 seconds after you have finished cleaning your stove or fireplace to ensure all materials are safely captured in the container.
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a double polarized plug (one with the blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plugin anyway.
WARNING!BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUST IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUST INCLUDES BUT IS NOT LIMITED TO; COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.
WARNING!ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING THE POWERHEAD FROM THE CONTAINER.
REMOVING AND CLEANING THE FILTER
- Verify that the power cord is disconnected from the outlet.
- Remove the powerhead lid and position it upside down.
- Unlock and remove the filter screen from the lockclamps by turning counter-clockwise.

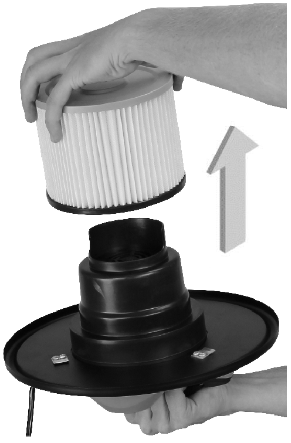

- Carefully remove the cartridge filter.

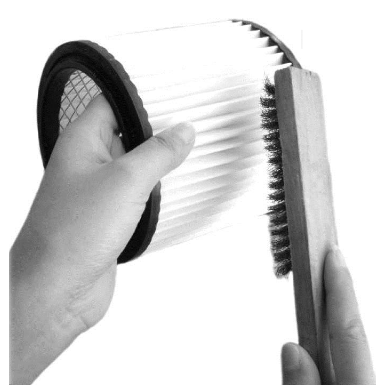

- Clean the cartridge filter by gently tapping or brushing dirt off.
- Carefully remove the pre-filter from over the tank and clean the ash or dirt from the filter by gently tapping or brushing the ash or dirt off.
IMPORTANT!CLEANING SHOULD NOT BE DONE INDOORS. DISPOSE OF ASH AND DIRT IN A NON-COMBUSTIBLE RECEPTACLE. FOR OPTIMAL PERFORMANCE, A NEW FILTER IS RECOMMENDED.
FILTER INSTALLATION

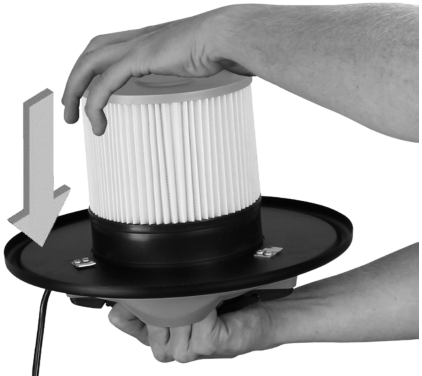

- Place the cartridge filter onto the vacuum powerhead and push in until it stops flush against the powerhead.

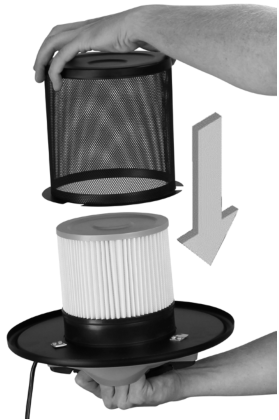

- Place the filter screen over the cartridge filter and align the lock tabs.
- Turn the filter screen clockwise to lock into place, Do Not overtighten.
HOW TO ORDER REPAIR PARTS
For Parts Assistance Call: 800-750-2723 Ext 5051 or Email: [email protected]The information in this owner’s manual is specific to your unit. When ordering replacement parts the information in this manual will help to ensure the correct items are ordered. Before contacting customer service write down the model number of this unit. Other information that may be needed would be the part number and part description of the item(s) in question. Part numbers and descriptions can be found in the “Getting To Know Your Ash Vacuum” section of this manual. Once this information has been gathered you can contact customer service by phone at 1-800-750-2723, Ext 5051 or Email [email protected].
| Model Information |
| Model Number |
TROUBLESHOOTING
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK-UNPLUG BEFORE TROUBLESHOOTING
| Symptom | Possible Causes | Corrective Action |
| Vacuum will not operate. | Lack of power. | Check power supply – cord, breakers, fuses. |
| Container full. | Empty container and clean or replace filters. | |
| Dust comes out from motor cover. | The cartridge filter is damaged or installed incorrectly. | Replace cartridge filter. |
| Reduced efficiency and motor/ speed vibration. | There is a blockage in the hose, or the container inlet. The cartridge filter is clogged by fine dust. | Check hose and container inlets forblockage. Take off the filter and clean it. Or install a new cartridge filter. |
