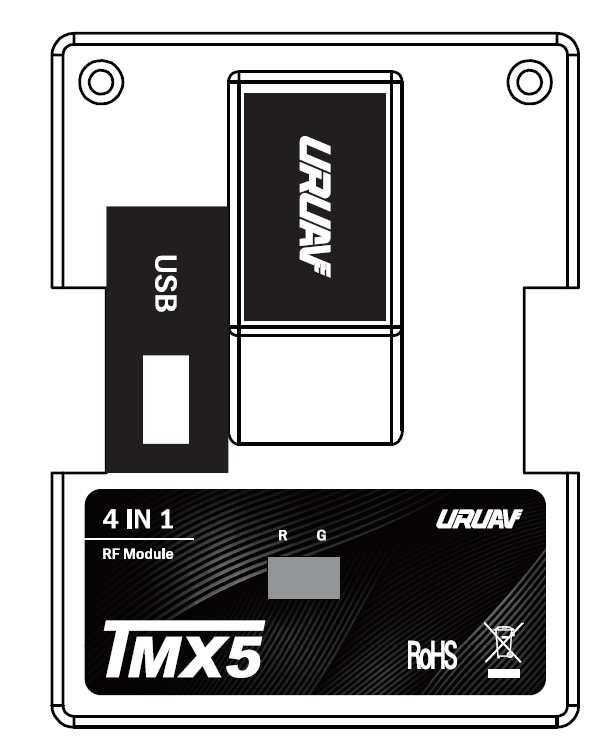

INSTRUCTION MANUAL FOR URUAV TMX5

OVERVIEW:

This 2.4G Multi-Protocol TX Module is STM32 ARM microcontroller based module. All available protocols are included. It is suitable for many brand of quadcopters, helicopters and airplanes. This module integrate four RF chips (CC2500,NRF24L01,A7105,CYRF6936) into one single circuit board, it support a variety of remote control protocols, such as S-FHSS, Walkera DEVO, Spektrum DSM2, DSMX, Flysky, FrSky, WLToys, Hubsan, hisky, Esky, Assan etc. You can control your craft flexibility with it, and you will get much excellent experience with your favorite transmitter.

SPECIFICATION

Brand Name: URUAV
Item Name: TMX5
Operating Voltage: 5-14V
Operating Current: <=100mA
Operating Frequency: 2.4G ISM band
RF Power: +22dBm
MCU: STM32F103CBT6 (128K ROM, 20K RAM)
Weight: 45g

FEATURE

Transmitter that supports the er9X/erSky9X/erSky9X or Open TX firmware can work with the module, The module protocol selection and blinding is done from the Model Settings menu on the transmitter. For telemetry capable transmitters, the telemetry integration is done seamlessly with the transmitter firmware.
