Instruction Manual for URUAV TMXS Lite
Overview
This 4-in-1 TX module is suitable for FRSKY X-Lite. It integrates four RF chips (CC2500, NRF24L01+, A7105, CYRF6936) into one single circuit board, it supports a variety of remote control protocols, such as S-FHSS, Walkera DEVO, Spektrum DSM2, DSMX, Flysky, Frsky, WL Toys, Hubsan, Hisky, Esky , Assan etc. You can control your model flexibility with it, and you will get much excellent experience with you favorite transmitter.
This module is compatible with the Multi-module project on github. It’s based on STM32 microcontroller. All available protocols are included in serial mode. In this mode, it uses a serial protocol to communicate with your transmitter. The serial protocol does not require any hardware modifications, but you should update the firmware on your transmitter to the latest. Then the model protocol selection and binding is done from the Model Settings menu on your transmitter.
For telemetry capable transmitters, the telemetry integration is done seamlessly with the transmitter firmware.
Specifications
- Brand Name: URUAV
- Item Name: TMX5 Lite
- Operating voltage: 5-9V
- Operating current: <=180mA
- Operating frequency: 2.4G ISM band
- RF power: +22dBm
- MCU: STM32F103CBT6(128K ROM, 20K RAM)
- Weight: 32g
How to Use
- Refer to the website above, update your transmitter with proper firmware.
- Screw down the antenna of module tightly, and then install TX Module to the module bay of your transmitter.
- Power on your transmitter, enter Model Settings menu, turn on External RF, and select ‘MUL T’ mode, then you will see the bind and protocol button in the menu, and then you can choose a proper protocol for you model and bind with it now.
LED State
Notice
- Make sure to check the ‘multimodule’ option, when you update Open TX firmware through Companion software.
- In serial mode, for FRSKY and s-FHSS protocol, you may need set the value of Fine or Option (in Model Settings menu on your TX) properly to bind with your model. The value can be varied, since it’s partly depended on your model.
Package Included
- 1 x TMX5 Lite Module

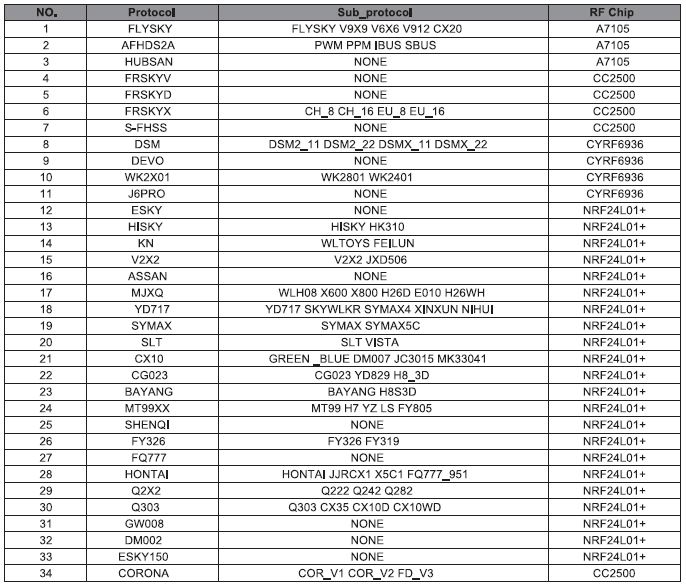

Available protocols (incomplete and expanding)
