Vastmedic VM8 CPAP Cleaner and Sanitizer User Manual

Table of Contents

Vastmedic VM8 CPAP Cleaner and Sanitizer User Manual

Model No. VM8

Website: vastmedic.comPhone: +1 (307) 735 3154Email: [email protected]

Thank You

Thank you for purchasing Vastmedic CPAP Cleaner Pro. We are dedicated to providing our customers with quality products for building a healthy living. Should you have any questions or concerns about using your new product, feel free to reach out to our helpful customer support team We hope you enjoy your new product!

PACKAGE CONTENTS

1 x CPAP Cleaner Pro1 x Adapter Set1 x Tube Adapter1 x User Manual6 x Carbon Filter Cotton

SPECIFICATIONS

Size	9×9×7.3 inch
Weight	3.4lb
Input	100-240V~50/60HZ
Output	5V2A
Store temperature	-20~+55°C
Operation temperature	-5~+45°C
Power	5W

SAFETY INFORMATION

Read and follow all instructions for safe and effective cleaning of the CAP hose & mask. Failure to follow directions can cause serious injury. Save all packaging, instructions, and components included with this product.

Vastmedic CPAP Cleaner VM8 is intended to clean Continuous Positive Airway Pressure (CPAP) Hose, and Mask using bacteria and germ-killing activated oxygen (Ozone) and UV light. It is designed for home use.

NOTES:

It’s recommended to clean your CAP Hose. Mask, and Tube daily.
It’s recommended to clean your Vastmedic CPAP Cleaner weekly.
This product will not remove skin oils and mucus. To remove these fluids, you can wipe down your equipment with CAP wipes or other cleaning methods as directed by your equipment manufacturer.

WARNINGS:

To reduce the risk of burns, difficulty in breathing, electric shock, or injury:

DO NOT stare at the UV light or expose the skin directly to it.

DO NOT use the CPAP equipment immediately after ozone disinfection, residual ozone may hurt your respiratory system, please wait until the odor is clear before using the equipment.

DO NOT disassemble or repair the product, in case it is damaged.

DO NOT operate or place the CPAP Cleaner Pro on or near hot surfaces such as ovens, heaters, or active fireplaces.

Keep this CAP Cleaner out of reach from children.

Keep the product away from water or other liquid.

ONLY store this product indoors away from direct sunlight or chemicals.

Use the original power adapter and USB cable, in case of product malfunction.

DO NOT move or open the lid while the machine is running.

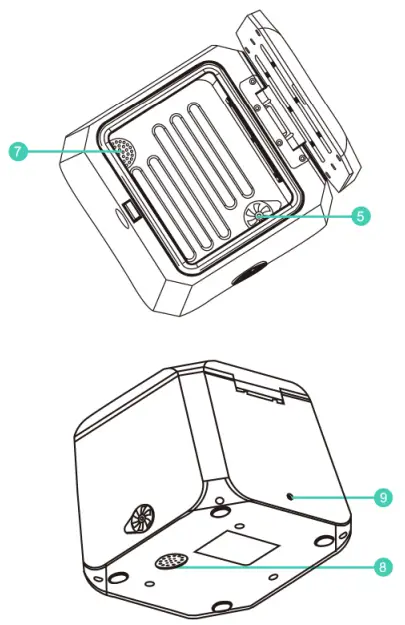

FUNCTION DIAGRAM

UV light
Key panela. Start Pauseb. “-”c. “+”d. Manuale. Timer
Display panelf. UV indicatorg. Ozone indicatorh. Remaining disinfection timei. Clockj. Manual /Timer modek. Working indicator
Open button
Internal sealing lid
External sealing lid
Inner Activated Carbon Filter
Outer Activated Carbon Filter
DC input

MANUAL MODE SETTING

1. How to run UV disinfection in manual mode

1.1 Put the items into the chamber (CPAP mask/tubing/phone etc, close the chamber lid1.2 Press Start/Pause button to turn on1.3 Press Manual button to switch the mode until the UV indicator is on1.4 Press+/-button to adjust the duration, default UV disinfection time is 15 minutes.1.5 Press Start/Pause button to start disinfection

2.1 How to run ozone internal disinfection in manual mode

2.1.1 Put the items into the chamber (CPAP mask/tubing/etc), open the internal sealing lid, close the chamber lid2.1.2 Press Start/Pause button to turn it on2.1.3 Press Manual button to switch the mode until the ozone indicator is on2.1.4 Press+/-button to adjust the duration, default ozone disinfection is 30 minutes2.1.5 Press Start/Pause button to start disinfection

2.2 How to run ozone external disinfection in manual mode

CAUTION: Leave the mask and hose in the cleaner for 1 hour after the cleaning cycle to allow the residual activated oxygen (ozone) returning to ordinary oxygen.

Dry the CPAP machine, hose, and Vastmedic cleaner sit for 1 hour after the cleaning cycle to allow residual activated oxygen (ozone) to revert to ordinary oxygen.

3. How to run UV + ozone disinfection mode in manual mode

3.1 Put the items into the chamber (CPAP mask/tubing/etc), open the internal sealing lid, close the lid.3.2 Open the external sealing lid, connect tubing to CPAP machine, and close the lid.3.3 Press Start/Pause button to turn on.3.4 Press Manual button to switch the mode until the UV and ozone indicator are both on, the UV and Ozone working time are continue to single mode.3.5 Press Start/Pause button to start disinfection (UV sterilization first and then goes to ozone)

TIMER SETUP

After using your ventilator, you can put the items into the chamber or connect them to the cleaner to sterilize automatically at a certain time every day.

4. How to set the timer

4.1 Press and hold the Timer button, and press +/- to adjust number of hours.4.2 Then press the timer button switch to minutes flashing, and press +/- to adjust the number of minutes.

5. How to set the disinfection timer mode

5.1 Set the clock to ensure that it is consistent with the local natural time (need to reset after each power off)5.2 Choose one of the three disinfection mode mentioned above and follow the instruction above to set the disinfection mode and duration.5.3 Press Timer button to adjust the disinfection time you need, then the Timer icon lights up, indicating that the timer mode is set.

6.How to turn off the machine

Long Press the Start/Pause button for 3 seconds to turn off the machine. It will working on time if the timer mode is set up)

7. Replace filter cotton

7.1 Remove the screw with a screwdriver;7.2 Remove the filter cover;7.3 Replace the old filter cotton with new filter cotton;7.4 Reassemble the filter cover and the screw.

Tips:

The filter cotton is recommended to be replaced every 2 months

ROUTINE CARE

When not using the product for a long time, please put it in the packaging box.
Do not place it in the damp or in the sun for a long time.
When using the product to sterilize, please put it in a dry, clean and ventilated environment.
Do not crack or strongly extrude the product, in case of shocking shell fragments and the internal precise electronic devices.
Do not use volatile liquids or organic liquids to wipe the product, or it may damage the surface of the product.

FAQ

How often should I clean my CPAP machine?It would be best if you cleaned the hose, mask, and tube daily.
How often should I clean my Vastmedic CPAP Cleaner?It would be best if you cleaned it weekly.
Can I use it to disinfect everything as long as it can fit in the box?Yes, you can. This professional sterilizer box can not only be used for professional machine and tools sterilization but also can be used for sterilization on a toothbrush, electronics, hearing aids, children’s toys, and other things in the household.
Does this use UV-C rays which, according to the FDA, is the only UV light actually to kill?Yes. This product’s UV wavelength is 253.7nm within the UV-C range.
Can I use it for my machine and hose?Yes. This product is equipped with conversion adapters with the diameter of 0.39. 0.87 and 0.89 inches. In other words, almost all machines and tubes on the market can be used with this cleaner.
Should I wash the mask and tubing before using CPAP Cleaner?No. Please put the dry items into the chamber only. If you want to wash the mask and tubing before sanitization, please dry the items first.
Does the ozone mode cause a harmful emission to the environment?No. The activated carbon filter is highly effective at ozone removal. However, the removal efficiency decreased with use. Therefore, please replace the activated carbon filter ever two months.
What is the working time of each mode?There are two modes – UV mode and Ozone mode. UC mode default time is 15 minutes. and Ozone mode is 30 minutes.
Need I turn over the item in the machine and sterilize it again for better sterilization?No, you don’t need to. As our sanitizer box with reflective glass provides 360° protection for universal support. UV sterilizing lamp strength is equal to more than 20 times the intensity of the sun. Cleaning Rate Of 99.9%. 360 degree all round no dead angle cleaning, faster and more thorough.
Is it USB-powered? What if I don’t have a USB power adapter? Can I use a power bank as the power source to use Vastmedic CPAP Cleaner while traveling?Yes, it is USB cable powered, so you can get it charged easily, such as a power bank, computer, and other devices with a USB outlet. If using a portable power bank to provide power, please make sure the power banks output is no less than 5V 1A.
Where can I get more information about Vastmedic PAP Cleaner?Go to www.vastmedic.com or contact Customer Service [email protected].
Is there a demonstration I can watch on how to use Vastmedic CAP Cleaner?Yes. Go to www.vastmedic.com.

LIMITED 1 YEAR WARRANTY

This Vastmedic CAP Cleaner is guaranteed to be free from manufacturing defects for a period of 1 year from the date of purchase under normal use. This limited warranty does not apply to use in any clinical or commercial applications. If the unit fails to operate during the lifetime of the original reqistered purchaser, return its postage prepaid along with $7.00 for return shipping and insurance to:

Vastmedic LLC., Attn: Repair Department, 2549 Route 22, Dover Plains, NY 12522. If Vastmedic determines that the unit failed to operate due to a manufacturing defect, the unit will be repaired or replaced at the option of Vastmedic. Repair or replacement of the unit is the sole remedy under this limited warranty. This warranty gives you specific legal rights, which vary from state to state. As a condition of this warranty, the enclosed warranty registration card must be completed and sent to us within 10 davs of the purchase date.

This Limited Warranty constitutes Vastmedic’s only responsibility and obligation to repair and/or replace materials or components. We make no other express or implied warranties, arising by operation of law or otherwise. or any warranty of merchantabilitv or fitness for a particular use or purpose whether or not the use or purpose has been disclosed to Vastmedic in specifications, drawings or otherwise, and whether or not Vastmedic products are specifically designed and/or manufactured by Vastmedic for the buyer’s use or purposes, except for the limited warranty stated above. Vastmedic will not be responsible for any indirect, incidental, special, consequential, or punitive damages or other loss, including, but not limited to, damage to or loss of other property or equipment and personal injuries, whether to purchaser or others. Vastmedic shall in no event be liable to the purchaser for any amount in excess of the cost of repair and/or replacement of the unit
