ASSEMBLY GUIDE
URBANA
6X6 KEYHOLE GARDEN
VT17507 / VT17607ESPRESSO SLATE
V 1.12 | AUG 08, 2020
1-800-282-9346
[email protected] WWW.WEAREVITA.COM 8:00 AM – 4:00 PM EST
PARTS LIST
16002 – POST A – 21 7/8″ (55.5 CM) – X11
16200 – POST B – 12 3/8″ (31.5 CM) – X1
16037 – C-CHANNEL C – 21 7/8″ (55.5 CM) – X24
16201 – C-CHANNEL D – 12 3/8″ (31.5 CM) – X6
16202 – BASKET POST E – 22″ (55.8 CM) – X2
16203 – SLATE15203 – ESPRESSOBOARD F34 1/8″ (86.6CM) – X12
16204 – SLATE15204 – ESPRESSOBOARD G22 1/4IN (56.6CM) – X10

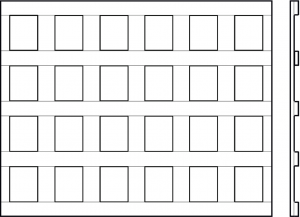

16205 – SLATE15205 – ESPRESSOBASKET PANEL H22″ X 9 3/4″ (55.8 CM X 24.8 CM) – X2
3 V 1.12 | AUG 08, 2020
16206 – SLATE15206 – ESPRESSOBASKET PANEL I22″ X 24 1/2″ (55.8 CM X 62.1 CM) – X1
16207 – SLATE15207 – ESPRESSOU-SPACER J9 1/2″ (24 CM) – X6
16208 – SLATE15208 – ESPRESSOBRACE K34 1/8″ (86.6 CM) – X3
16325POST CAP L1 1/4”(3.2 CM) – X24
4 V 1.12 | AUG 08, 2020

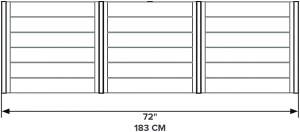

PRODUCT DIMENSIONS
5 V 1.12 | AUG 08, 2020
1
16002 – x11 A 16325 – x11 L
X11
2
16037 – x12 C
X6
6 V 1.12 | AUG 08, 2020
3
16037 – x6 C
X3
4
16037 – x6 C
X2
7 V 1.12 | AUG 08, 2020
5
16203/15203 – x2 F
16204/15204 – x2 G
6
16203/15203 – x2 F
x1
x1
8 V 1.12 | AUG 08, 2020
7
16203/15203 – x2 F
16204/15204 – x3 G
x1
x3
x1
8
16203/15203 – x6 F
16204/15204 – x5 G
9 V 1.12 | AUG 08, 2020
9
16205/15205 – x2 H
10
16202 – x2 E
10 V 1.12 | AUG 08, 2020
11
16206/15206 – x1 I
12
16201- x3 D 16207/15207 – x3 J
11 V 1.12 | AUG 08, 2020
13
16201 – x3 D 16200 – x1 B 16325 – x1 L
14
16208/15208 – x3 K 16207/15207 – x3 J
12 V 1.12 | AUG 08, 2020
15
16325 – x12 L
13 V 1.12 | AUG 08, 2020

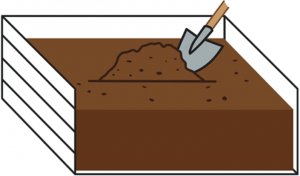

A. FILL WITH SOIL!

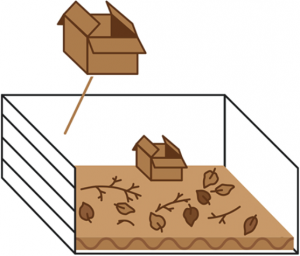

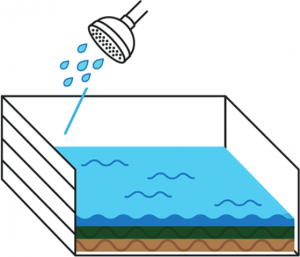

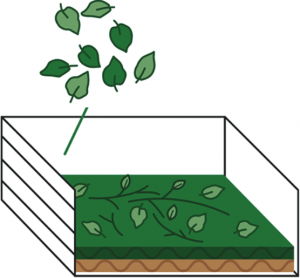

B. MAKE YOUR OWN SOIL!
1 2
3 4 5

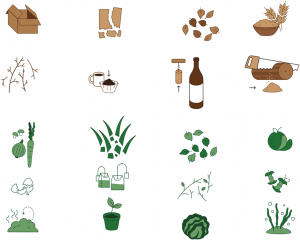

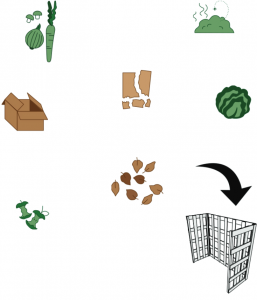

CARBON
NITROGEN
14 V 1.11 | AUG 05, 2020
