VIVE MOBILITY MOB1010 Rollator Walker Owner’s Manual

VIVE MOBILITY MOB1010 Rollator Walker Owner’s Manual

WHAT’S INCLUDED

A 1x Rollator FrameB 2x Removable Front WheelsC Rollator Bag

OVERVIEW

We are constantly answering questions and recording helpful videos to make using your Vive Mobility Rollator as easy as possible. Check out the included links and QR codes to help you through the process .

ATTACHING/DETACHING FRONT WHEELS

Want to watch us do this? Check out vhealth.link/bl for an easy instructional video.

1. Insert the wheels into the front wheel slot. Be sure you hear a click indicating the wheel is securely in place.
2. To detach the wheels, simply press the button at the top of the wheel slot and pull down the wheels.

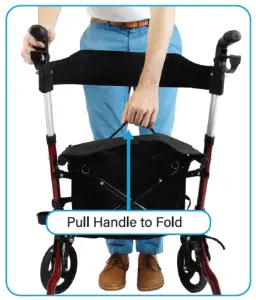

FOLDING/UNFOLDING INSTRUCTIONS

            Open Rollator                                     Fold Rollator

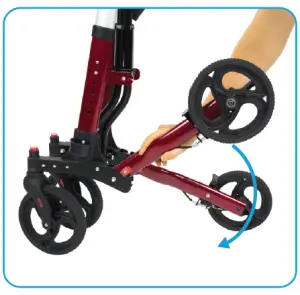

To unfold the rear legs, Pull the tabs on either side of the leg (color may vary) towards the wheel until the lock is free of the groove. Hold the tabs in place while folding the leg down. Then release the tabs to allow the bar to lock in place in the down position.

report this ad

To fold the rear legs, Pull the tabs toward the wheel until free of the groove. Then lift the wheel up until folded, and release the tabs to lock the wheel in the up position.

SPECIFICATIONS

• Overall Width: 25.5″ • Folded Width: 10.8″
• Overall Length: 25.5″ • Shopping Bag Weight Capacity: 11 LBS
• Armrest Lowest Height: 31″ • Product Weight: 19 LBS
• Armrest Highest Height: 36″ • Max User Weight: 300 LBS
• Seat Width: 17.5″
• Seat Depth: 9.5″

WARNING

• Do not use strong corrosive cleaner to clean the product’s surface.
• Product should not be left outside in rainy conditions.
• Product may rust if regularly exposed to moisture.
• Before sitting down on the seat, please lock both brakes to prevent the rollator from sliding.
• Do not hang any heavy weighted items on either of the armrests as it will cause the rollator to be unstable.
• Please fold the rollator before storage.
• This item is meant to be a walking aid. This means that it is not built to support the full weight of ones body, it is only meant to assist you while walking. If a large amount of force is placed on this item, even when brakes are in locked position, this can cause the item to move out of its position.
