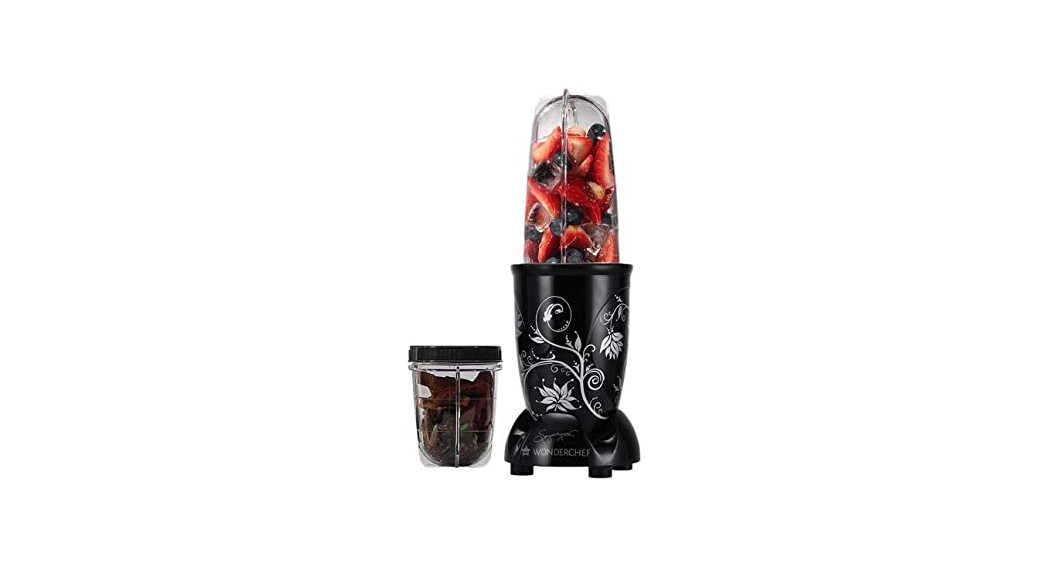

WONDERCHEF 60018330 Nutri-Blend 22000 RPM Mixer-Grinder User Manual

Thank you for purchasing the WONDERCHEF “Nutri-blend”.Please read this instruction carefully before your first use of this product.

IMPORTANT SAFEGUARDS

1. Make sure your electricity supply is 230V-50Hz.
2. Use the unit only as described in this manual.
3. To prevent electrical shock, do not immerse the motor base and the cord set into the water.
4. This is not a toy. Close supervision is required when the unit is used by or near children.
5. This unit is intended for household use only. Do not use the unit at outdoors or for another purpose than intended.
6. Never leave the unit unattended while it is in operation. Avoid contacting the moving parts.
7. Ensure to unplug the unit when not in use, assembling or disassembling, and before cleaning.
8. The use of attachments, including the jars, not recommended by the manufacturer may cause a risk of injury to persons.
9. Blades are sharp. Handle with care.
10. Do not place the unit near any explosives, heated oven or hot surfaces.
11. Place the unit on a flat heat-resistant surface.
12. Do not let the cords hang over the edge of a table or the like.
13. Please hold the plug to disconnect from the power socket.
14. Do not run the unit continuously for longer than 1 minute at a time. Wait at least 3 minutes before running the unit again.
15. This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

NOTE: To avoid the danger of electric shock, unplug the unit from the outlet when not in use or before cleaning. If the supply cord is damaged, stop to use immediately and bring it back to a service center for repair.

PARTS DIAGRAM

FIRST USE

1. Remove all packaging materials and labels.
2. Clean the motor base and the parts thoroughly before use (See “Cleaning and Maintenance” )
3. Plugin the unit into the power outlet, the unit is now ready for use.

OPERATING INSTRUCTIONS

1. Plug the unit into a proper power socket at 230V— 50Hz.
2. The unit is designed with a built-in safety system. If the Jar is not securely locked into the motor base, the unit will not function.
3. The Nutri-blend can be used for blending or grinding. You can use the unit with different modes as below :

A. Blending:

1. Put the prepared fruit (eg. apple, carrot, kiwi, strawberry, etc.) into the Long Jar.
2. Cover the Long Jar with the Blade for blending (Fig. 1)
3. Put the Jar onto the motor. Make sure the Ledges of the Jar are incorrect position on two grooves of the motor base. (Fig. 2)
4. Push down the Jar and turn it clockwise to lock into the motor base (Fig. 3). The unit starts operating.
5. When the blending is completed, turn the Jar anti-clockwise to release from the motor base (Fig. 4). The operation will stop.
6. Take out the Jar and open the Blade holder. Pour the blended juice into a container and be ready for serving.
7. Or you can cover the Jar with the Lid (Fig. 5). Keep in the refrigerator for serving later.

B. Grinding:

1. Put the prepared ingredient (eg. coffee bean, soya bean, rock sugar, sesame, ) into the Short Jar.
2. Cover the Short Jar with the Blade for grinding (Fig. 6)
3. Put the Jar onto the motor. Make sure the Ledges of the Jar are incorrect position on two grooves of the motor base. (Fig. 7)
4. Push down the Jar and turn it clockwise to lock into the motor base (Fig. 8). The unit starts operating.
5. When the grinding is finished, turn the Jar anti-clockwise to release from the motor base (Fig. 9). The operation will stop.
6. Take out the Jar and open the Blade holder. Pour the ground food into a container and ready for use.
7. Or you can cover the Jar with the Seasoning Cap for use directly (Fig. 10).

NOTE:

1. The blades are sharp. Please handle it with care.
2. Do not run the unit continuously for longer than 1 minute at a time. Wait at least 3 minutes before running the unit again.
3. Do not overput food into the Jar for operation. (Maximum loading capacity is 80m1 for Short Jar and 250m1 for Long Jar)

CLEANING AND MAINTENANCE

1. Unplug the unit before cleaning.
2. Take off all the parts and clean under the running water (Fig. 11). Rinse and dry.
3. Do not immerse the motor base and power cord set into water (Fig. 12). Clean the motor base with a damp cloth and wipe it dry (Fig. 13).

NOTE :

1. Do not immerse the motor base and power cord set into the water.
2. The Blades are sharp. Handle with care and patience.
3. Make sure the blades are thoroughly dry after each cleaning in order to avoid furring.
4. Cleaning is required after each operation.

STORAGE

1. Follow the above Cleaning instructions to well maintain the unit before storage.
2. Tidy up the power cord.
3. Keep the unit away from children’s easy access.
4. Store the unit and the accessories at a dry, cool place.

SPECIFICATIONS

Voltage: 230V — 50HzPower: 400WModel No.: BL216ABJar Capacity: 300m1 (Short Jar) 500m1 (Long Jar)Loading Capacity: 80m1 (Short Jar) 250m1 (Long Jar)

IMPORTANT :

1. The unit is designed for household use only.
2. Commercial users will not obtain the regular warranty as stated in the terms of the warranty card.

report this ad

Wonderchef Home Appliances Pvt. Ltd.Unit No. 303, 3rd Floor, B Wing, Supreme Business Park,Hiranandani Gardens, Powai, Mumbai – 400076, Maharashtra,India. Customer Care Number: 18602660788*Email Id: [email protected] I www.wonderchef.comStandard Charges apply.
