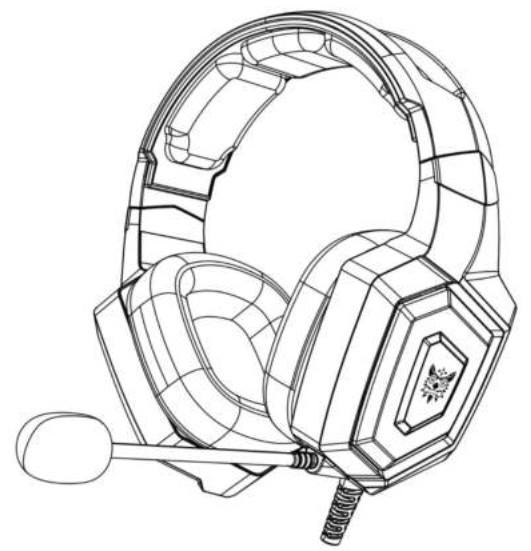

Onikuma
SHENZHEN OUNI TECHNOLOGY CO, LTD.
Product introduction

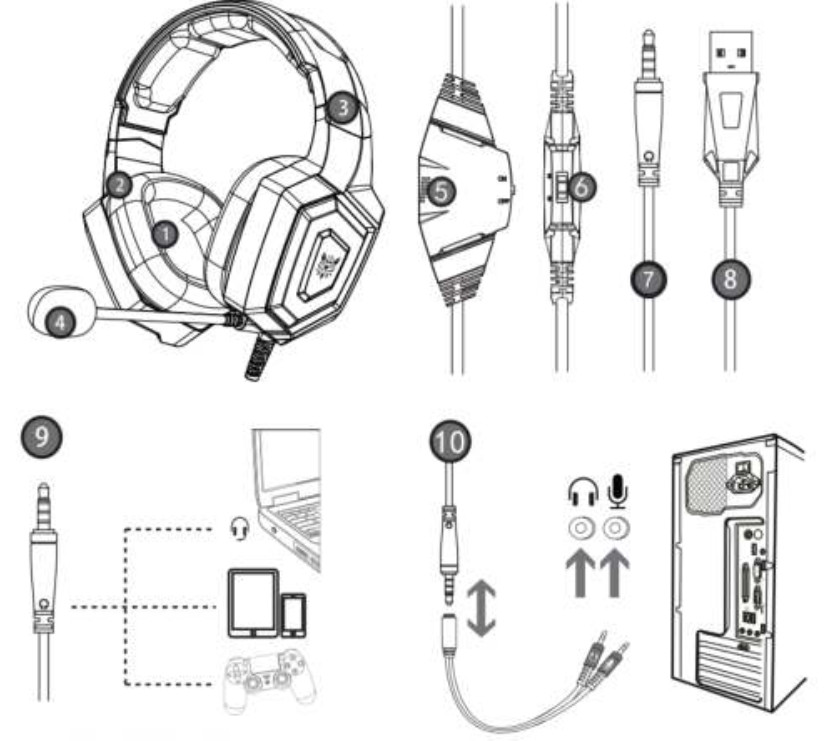

- High-quality sound production unit offers high, medium, and low audio experience:
- Skin type protein earmuff, environmental protection. wearp roof and comfortable to wear,
- Lightweight design, self-adjusting head beam design, the best game wearing experience;
- High sensitivity microphone delivers more accurate, clear and smooth voice;
- Volume control button
- Microphone on-off button
- 3.5 MM International standard (CTIA) device interface (right channel + / ground – /left channel +/ microphone+)
- USB interface for power supply for the LED lights
- Used for single hole interface
- Used for one-to-two tieline.
Product parameters
| Speaker size | 50mm | Microphone impedance | 2.2K Ω |
| Impedance | 32 Ω ± 15% | Directionality | Omni-directional |
| Sensitivity | 106dB ± 3dB | Cable length | 2 .2M ± 15% |
| Frequency range | 20-20K H Z | LED working voltage | DC5V ± 5% |
| Microphone | 6.0 × 2.7mm | Working current | ≤ 100mA |
| Microphone sensitivity | -42dB±3dB | Headset jack | USB+ 3.5mm |
Range of application and operating instructions
- The headset is applicable to 3.5MM quadrupole single plug audio devices such as laptops, tablet PC, mobile phones, etc. With the bisected adapter cable of 3.5mm interface, the 3.5mm dual plug of the computer can be used
- Generally, the cable end or microphone end is designed on the left side. so wear the cable end or microphone end on the left ear when wearing headset
- When using the headset on the computer. please make sure the headset microphone switch is turned on: then make sure the computer microphone switch is turned on. Please find the “speaker” icon in the computer taskbar, and double-dick to enter the volume control for settings. And enter into the “voice” for settings on the “Control Panel”.
- Please make sure the headset volume adjustment button is at the minimum volume, and can be adjusted to the appropriate volume
- Please use the headset to enjoy the game
- Support the 32-bit and 64-bit Win7 I Win81 Win8, 1 / Win 101XP.
Frequently asked questions
- When playing music by the headset, there is accompaniment but no singing?A) The headset plug is a quadrupolar single plug type. The international (CT1A) standard 3.5 mm pin connection is left channel – night channel — ground wore — microphone, which is the most popular connection in the market and the largest application. If the international standard headset is connected to a non-international standard interface, there will anse the phenomenon of background sound only If the audio device is non-international standard, the adapter cable is needed
- When playing music with headset. there is sound but the voice chatting can’t work?A) When using the headset, please make sure that the tone control microphone switch of the headset is turned on. and make sure that the microphone works normally;B) The headset plug is quadrupolar, single plug type with the function of audio/voice combination, and is applicable to single-hole audio device. Please make sure that if your device fits the audio/voice combination interface.C) The headset plug is quadrupolar, single plug type, while your device may be of tripolarD) With the bisected adapter cable of 3.5mm interface you can use the 3.5mm dual plug (headphone and microphone lack) interface of the computer. You can enjoy beautiful music and voice chatting at the same time.
- When playing music with the headset there arises the phenomenon of noise small volume. unclear sound. or one side with sound and the other side without sound?A) Please check if the plug is well inserted into the interface device:B)The headset plug Is single plug type, while your device may be of bipolar interface..
- When using the headset, there Is current sound?A) Please check if the plug is well inserted into the interface device;B) There are electrics of strong magnetic field at hand, please take away them (such as the mobile phone, fan , ).C) Please check if the microphone boost of the computer microphone is turned on. Please open the control panel – sound – record .level -microphone boost to adjust the microphone boost mode.
Matters needing attention
A) Please enjoy music at a moderate volume to prevent adverse effects on the hearing:B) Please be careful to wear when driving or cycling so as not to affect safety:C) Product specifications are subject to change without notice,C) If disassemble the headset without authonzabon. we can not guarantee the quality.
Packing list
- Gaming headset
- Operating instructions
