Portable printer XPrint User Manual

Table of Contents

Portable printer XPrint

Settings

Install the APP

Scan the QR code, or download from the App store and download the mobile app XPrint ™.

Turn on printer

Press and hold the power button to turn on the printer.

For transportation safety, the battery is not fully charged. After turning on, you need to charge the device, according to prompts in the mobile application.To charge, connect the Micro USB cable to the power source, and plug it into recharging slot on the back of the printer.When fully charged, the charging indicator will glow green.Charge approximately 1 hour *, using the charger 5В⎓2А 10W.* Data obtained under laboratory conditions, depending on your conditions, the charging time may be different.

Connect to printer

Connection method 1: Android-powered mobile phone with NFC support.

If you can not connect to the printer, make sure that the NFC module of the mobile phone is in the zone above the XPRINT logo and try again.NFC reading zone

Connection method 2: mobile phone based on Android OS or iPhone with Bluetooth support.

Go to your mobile phone settings, turn on Bluetooth.
Update the list of Bluetooth devices, select XPrint-XXXX.
Confirm pairing to complete the connection

Start printing, using mobile APP!

To save battery power, the printer will automatically turn off after 10 minutes in standby mode.
The photo will go in and out 5 times, for printing in separate colors and lamination. Do not pull paper out of the printer until a message appears in the mobile application, that the printing is complete.Do not reuse photo paper. Reuse may damage the mechanism.
As a gift to the device is a removable tray for printing with 9 sheets of photo paper.

Main Parameters

Name	Portable printer XPrint™
Model	DMP 100
Weight	268 g (w/o packaging )
Input voltage	5V⎓2А
Connection method	Bluetooth
Printing method	Sublimation printing
Printing dimensions	23 inch (5486 mm)
Image forma	JPEG, PNG

Name and content of harmful substances in the product

Name of component	Harmful substances
(Pb)	(Hg)	(Cd)	(Cr(VI))	(PBB)	(PBDE)
Mechanism	○	○	○	○	○	○
Circuit board	○	○	○	○	○	○
Housing	○	○	○	○	○	○
This table is created according to the provisions of the standard GB/T 26572. ○: the content of harmful substance in all homogeneous materials of the component is within the requirements of the standard GB / T 26572. ×: at least one of the homogeneous materials of the component exceeds the limits of the requirements of the standard GB / T 26572.

Overview

Changing of printing tray

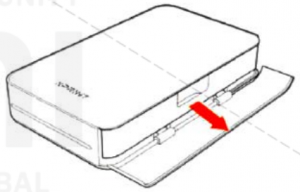

Open the print-cartridge door bay;
Obtain a used removable print cartridge;
Insert a new removable print cartridge.Do not open the removable print cartridge and do not reuse a photo paper

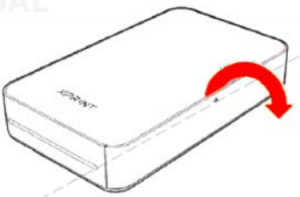

Close the door of the removable print cartridge compartment.

Statuses of indicator

Power/Fault indicator

	Not light up	Device is off
	Lights white	Device is on
	Slowly blinks white	Device upgrades / Heating continues / Cooling continues
	Quickly blinks white	Printing
	Quickly blinks red	Printer fault Fix the problem, according to the tips in the mobile application

Bluetooth Indicator

	Quickly blinks blue	Waiting for connection
	Lights blue	Connected

Charging indicator

	Lights green	Fully charged
	Lights red	Charging

Caution!

Recommended ambient temperature when using: – 5 ° C ~ 35 ° C, avoid using the device in low and high temperatures;
Recommended temperature during charging: 5 ° C ~ 35 ° C, avoid charging the device at low and high temperatures;
Recommended image resolution from 1240 x 1864 and above.

For more information, please visit http://www.hannto.com/service or scan your QR code and sign in to our customer support account at WeChat.
