Snowblower 060-1314-4
MODEL #060-1314-4PARTS INFORMATIONSNOWBLOWER SERIAL NUMBER RANGE: ALLTo order replacement parts please call: 1-866-523-5218.REV 20210505
SNOWBLOWER PARTS DIAGRAM
SNOWBLOWER PARTS LIST
# |
Part Number |
Description |
Qty. |
1 |
Figure E |
Auger Assembly |
1 |
2 |
30133020025000 |
Flange Triangle Self-tapping Screw, M10 × 18, White Zinc |
4 |
3 |
23012000105000A |
Quick Clip, T=1 mm, Black |
2 |
4 |
2301300006A |
Wheel Shaft Washer, T=2, 16.2 × 36, Black |
2 |
5 |
31013020015000 |
Thin Flat Key, B4 × 6 × 32, 45#, Black |
2 |
6 |
2301600009B |
Wheel Assembly, 15 × 5, Airless, Rubber |
2 |
7 |
Figure D |
Drivetrain Assembly |
1 |
8 |
23041000530301A |
Belt Protection Cover, Black |
1 |
9 |
23033000485000A |
Flange Triangle Self-tapping Screw, M6 × 16, White Zinc |
2 |
10 |
23016000135000A |
Auger Belt Gates 5LXA935E (L × W × H = 935 × 16.6 × 8.2) |
1 |
11 |
2303600007A |
Drive Belt Megadyne HTD 840-5M15 (L × W = 840 × 15 / Pitch = 5 mm) |
1 |
12 |
30133020035000 |
Flange Triangle Self-tapping Bolt, M8 × 16, White Zinc |
8 |
13 |
Figure F |
Chute Assembly |
1 |
14 |
2309900012 |
Nylon Cable Tie, 2.5×200 |
3 |
15 |
23062000780265B |
Lower Handle, Black |
1 |
16 |
30913090085000 |
Half-Round Head Square Neck Bolt, M8 × 50, Blue White Zinc |
4 |
17 |
21061000110301A |
Curved Washer |
4 |
18 |
21061000400301A |
Rotating Knob, Black |
4 |
19 |
23061000490301A |
Cord Clamp, Black |
1 |
20 |
Figure G |
Handle Assembly |
1 |
# |
Part Number |
Description |
Qty. |
21 |
23089000025000A |
Power Outlet Wire |
1 |
22 |
23089000035000A |
AC Start Line, 1830 mm |
1 |
23 |
30323060035000 |
Flange Locking Nut, M8, Hexagon, Blue White Zinc |
4 |
24 |
Figure B |
Engine Assembly |
1 |
25 |
30313060025000 |
Hexagon Nut, M8, Blue White Zinc |
4 |
ENGINE PARTS DIAGRAM
Figure B
ENGINE PARTS PART LIST
# |
Part Number |
Description |
Qty. |
1 |
30913040085000 |
Hexagon Bolt, M8 × 35, Blue White Zinc |
1 |
2 |
3052301002 |
Spring Washer, Ø8, Black Zinc |
1 |
3 |
23032000335000A |
Thickened Big Washer, Ø8.2 × Ø30 × 3.7, White Zinc |
1 |
4 |
31013010065000 |
Flat Key, B4.7 × 4.7 × 70, Black |
1 |
5 |
23033000415000A |
Small Belt Pulley, Ø69.5 × 48, Black |
1 |
6 |
23034000525000A |
Small Synchronous Pulley Cover, 19 × 50 × 5.8 |
1 |
7 |
23034000075000A |
Small Synchronous Pulley |
1 |
8 |
30323060035000 |
Flange Locking Nut, M8, Hexagon, Blue White Zinc |
1 |
9 |
23034000565000A |
Shaft Sheath (Thin), Small Tension Pulley, 18 × 6 |
1 |
10 |
23034000665000A |
Small Tension Pulley, Ø55 × 22.6 |
1 |
11 |
23034000575000A |
Shaft Sheath, Small Tension Pulley, 18 × 16.5 |
1 |
12 |
23093000205000A |
Hexagon Bolt, 30 mm, 5/16″ (24UNF-2A), White Zinc |
1 |
13 |
23033000075008B |
Belt Lever, Ø6 |
1 |
14 |
30512050025000 |
Big Washer, Ø8, Blue White Zinc |
1 |
15 |
23032001175000A |
Small Tensioning Plate, T=3, 108.5 × 46.7, Black |
1 |
16 |
30933010015000 |
Small Carriage Bolt, M8 × 40, Blue White Zinc |
1 |
17 |
23093000175000A |
Hexagon Flange Bolt, 20 mm, 5/16″ (24UNF-2A), Black Zinc |
2 |
18 |
2309800001A |
Small Tension Pulley Spring, Ø1.5 × Ø11.5 × 56.5, White Zinc |
1 |
19 |
23034000595000A |
Small Tensioning Plate Cushion, 308 × 8 |
1 |
20 |
2030100311A |
Engine, R225S, 224CC |
1 |
21 |
2309900008 |
Engine Oil |
1 |
ENGINE DETAIL DIAGRAM
ENGINE DETAIL PART LIST
# |
Part Number |
Description |
Qty. |
1 |
12410-Z300120-0100 |
Cylinder Head Cover Subassembly, Blue White Zinc |
1 |
2 |
12004-Z010110-0001 |
Cylinder Head Cover Gasket |
1 |
3 |
14314-Z010110-0000 |
Valve Adjusting Nut |
2 |
4 |
14311-Z010110-0000 |
Valve Rocker |
2 |
5 |
14313-Z010110-0000 |
Valve Adjusting Bolt |
2 |
6 |
12003-Z010110-0000 |
Cylinder Head Bolt, M8 × 60, Blue White Zinc |
4 |
7 |
12109-Z810110-0000 |
Valve Lock Clamp |
4 |
8 |
12103-Z010110-0000 |
Valve Spring |
2 |
9 |
12101-Z810210-0000 |
Seal Guide |
1 |
10 |
30010-Z010110-0000 |
Spark Plug, F6RTC |
1 |
11 |
12131-Z950110-00A0 |
Cylinder Head Gasket |
1 |
12 |
12110-Z810120-0099 |
Valves Set |
1 |
13 |
12121-Z810120-0000 |
Exhaust Valve |
1 |
14 |
12111-Z810110-0000 |
Inlet Valve |
1 |
15 |
13200-Z140210-00A9 |
Piston Rings Set |
1 |
16 |
13122-Z510210-0000 |
Piston Pin Clip |
2 |
17 |
13010-Z810210-00A0 |
Connecting Rod |
1 |
18 |
90001-0632-0101 |
Hexagon Flange Bolt, M6 × 32, Blue White Zinc |
1 |
19 |
17004-Z1S0111-0001 |
Breather Tube |
1 |
20 |
14312-Z010110-0000 |
Valve Lock Nut |
2 |
21 |
14090-Z010110-0000 |
Lifter Stopper Plate Subassembly, Blue White Zinc |
1 |
22 |
12112-Z810210-0000 |
Valve Spring Retainer |
2 |
23 |
12140-Z810410-0BA0 |
Cylinder Head Subassembly |
1 |
24 |
90502-1114-00 |
Pin, 11 × 14 |
2 |
25 |
14071-Z440110-0000 |
Valve Rod |
2 |
26 |
14081-Z040110-0000 |
Valve Lifter |
2 |
27 28 |
13111-Z810120-00A0 13121-Z810110-0000 |
Piston Piston Pin, Ø13 × Ø45.9 |
1 1 |
# |
Part Number |
Description |
Qty. |
29 |
11310-Z1S0110-0BA0 |
Crankcase Subassembly |
1 |
30 |
90682-Z1S0110-0001 |
Oil Seal, Ø25 × Ø41.25 × 6 |
2 |
31 |
90204-Z520110-0001 |
Stud, M6 × 92.8 |
1 |
32 |
19340-Z330110-0000 |
Lower Shield, Blue White Zinc |
1 |
33 |
11011-Z1S0310-0100 |
Oil Drain Tube |
1 |
34 |
90408-Z010510-0000 |
Washer, Ø10 × Ø15.8 × 1.5 |
1 |
35 |
11007-Z010110-0001 |
Drain Plug Bolt, M10 × 1.25 × 15, Blue White Zinc |
1 |
36 |
19304-Z010710-00A1 |
Cylinder Body Shroud, Blue White Zinc |
1 |
37 |
28110-Z1S0210-HL00 |
Shroud |
1 |
38 |
28200-Z1S0210-HL00 |
Recoil Starter Assembly |
1 |
39 |
30140-Z051810-0001 |
Charging Coil |
1 |
40 |
13510-Z050210-0000 |
Flywheel Subassembly |
1 |
41 |
19352-Z010110-00A0 |
Impeller |
1 |
42 |
28002-Z0L0110-0000 |
Starter Pulley, Blue White Zinc |
1 |
43 |
13501-Z010110-0000 |
Flywheel Nut, M14 × 1.5, Blue White Zinc |
1 |
44 |
30423-Z1S0210-00A0 |
Ignition Coil Stop Engine Wire |
1 |
45 |
30400-Z330110-0001 |
Ignition Coil |
1 |
46 |
90207-Z330120-0101 |
Stud, M6 × 105, Blue White Zinc |
2 |
47 |
16002-Z050110-0000 |
Carburetor Insulator Gasket |
1 |
48 |
16003-Z010110-0001 |
Carburetor Insulator Plate |
1 |
49 |
16001-Z010110-0000 |
Carburetor Gasket |
1 |
50 |
16100-Z1S0210-R901 |
Carburetor Assembly |
1 |
51 |
17001-Z010210-0000 |
Air Cleaner Gasket |
1 |
52 |
17100-Z1S0210-0001 |
Air Cleaner |
1 |
53 |
90314-Z130210-0501 |
Nut, M6 × 17, Chrome Plated |
2 |
54 |
30431-Z010110-0000 |
Rubber Jacket, Ø9.5 × Ø11 × 90, Black |
1 |
55 |
90686-Z010710-0001 |
Fuel Pipe, Ø4.5 × Ø8.5 × 160 |
1 |
56 |
90740-Z010210-0001 |
Clamp, Ø7.5, Blue White Zinc |
2 |
57 |
16210-Z330310-0001 |
Primer Bulb |
1 |
# |
Part Number |
Description |
Qty. |
58 |
35540-Z1A0110-0000 |
Stop Engine Switch Subassembly |
1 |
59 |
16112-Z010110-0000 |
Seal Ring, Float |
1 |
60 |
16161-Z151310-0000 |
Main Jet, Standard |
1 |
16161-Z151110-0000 |
Main Jet, Altitude 3000-6000 feet |
/ |
|
16161-Z150910-0000 |
Main Jet, Altitude 6000-8000 feet |
/ |
|
61 |
90681-Z010710-0000 |
Seal Ring |
1 |
62 |
16400-Z810210-0000 |
Governor Gear Assembly |
1 |
63 |
90547-0205-00 |
Bearing, 6205 P53 |
2 |
64 |
37060-Z010120-0001 |
Engine oil Sensor, W/O Nut |
1 |
65 |
14200-Z1S0110-0009 |
Camshaft Assembly |
1 |
66 |
13300-Z1S0110-0000 |
Crankshaft Assembly |
1 |
67 |
11001-Z330120-0000 |
Crankcase Gasket |
1 |
68 |
90502-0812-00 |
Pin, 8 × 12 |
2 |
69 |
11411-Z1S0110-0B00 |
Crankcase Cover |
1 |
70 |
15030-Z010130-L400 |
Engine Oil Plug Subassembly |
1 |
71 |
90001-0832-0101 |
Hexagon Flange Bolt, M8 × 32, Blue White Zinc |
6 |
72 |
15010-Z1S0111-L400 |
Oil Dipstick Subassembly |
1 |
73 |
CMP-QGT-003 |
Cylinder Head Assembly Kit |
1 |
74 |
90203-Z010110-0301 |
Stud, M8 × 34 |
2 |
75 |
18001-Z010110-00A0 |
Exhaust Outlet Gasket |
1 |
76 |
18100-Z1S0110-0000 |
Muffler Assembly |
1 |
77 |
90303-0800-3101 |
Hexagon Flange Nut, M8, Blue White Zinc |
2 |
78 |
18140-Z1S0410-HL00 |
Scald Resistant Cover |
1 |
79 |
CMP-XSQ-004 |
Muffler Assembly Kit |
1 |
80 |
90684-Z030210-0000 |
Clip |
1 |
81 |
16520-Z1S0110-R902 |
Throttle Control Assembly, Blue White Zinc |
1 |
82 |
16072-Z010110-0001 |
Governor Support Bolt, M6 × 21, Blue White Zinc |
1 |
83 |
16063-Z1S0110-0101 |
Spring, Governor, Ø6 × Ø0.8 × 127, Blue White Zinc |
1 |
84 |
16062-Z010110-0001 |
Governor Rod, Blue White Zinc |
1 |
85 |
16012-Z010110-0000 |
Throttle Valve Returning Spring |
1 |
86 |
90305-0600-3101 |
Hexagon Flange Nut, M6, Blue White Zinc |
3 |
# |
Part Number |
Description |
Qty. |
87 |
16070-Z010110-0001 |
Governor Support Subassembly, Blue White Zinc |
1 |
88 |
90501-Z010110-0001 |
Pin, Blue White Zinc |
1 |
89 |
90408-Z010210-0000 |
Washer, Ø6.2 × Ø15 × 0.6 |
1 |
90 |
16061-Z010110-0000 |
Governor Arm |
1 |
91 |
90305-Z010210-0101 |
Hexagon Flange Nut, M10, Blue White Zinc |
1 |
92 |
30360-Z330110-H301 |
Support Control Box Subassembly |
1 |
93 |
30300-Z1S0110-0001 |
Starting Motor Assembly |
1 |
94 |
90103-0455-5301 |
Screw, M4 × 55, Black Zinc |
2 |
95 |
90502-0810-00 |
Pin, 8 x 10 |
2 |
96 |
90684-Z030120-00A0 |
Clip |
1 |
97 |
37050-Z010210-0001 |
Oil Protector, Blue White Zinc |
1 |
98 |
16667-Z330110-0001 |
Fuel Tank Decorated Plate |
1 |
99 |
16730-Z1S0110-Q201 |
Fuel Tank Cover |
1 |
100 |
16620-Z1S0110-HL03 |
Fuel Tank |
1 |
101 |
16680-Z010110-0001 |
Fuel Tank Oil Outlet Subassembly |
1 |
102 |
80057-Z1S0110-0001 |
Front Snow Guard |
1 |
103 |
90314-0600-B101 |
Nut, M6, Blue White Zinc |
1 |
104 |
90001-0635-01 |
Hexagon Flange Bolt, M6 × 35, Blue White Zinc |
1 |
105 |
90001-0625-01 |
Hexagon Flange Bolt, M6 × 25, Blue White Zinc |
5 |
106 |
90001-0614-0101 |
Hexagon Flange Bolt, M6 × 14, Blue White Zinc |
5 |
107 |
90001-0514-0101 |
Hexagon Flange Bolt, M5 × 14, Blue White Zinc |
1 |
108 |
90001-0616-0109 |
Hexagon Flange Bolt, M6 × 16, Blue White Zinc |
1 |
109 |
90001-0610-0101 |
Hexagon Flange Bolt, M6 × 10, Blue White Zinc |
1 |
110 |
90001-0612-0101 |
Hexagon Flange Bolt, M6 × 12, Blue White Zinc |
9 |
111 |
90007-0612-A102 |
Hexagon Flange Bolt, M6 × 12, Blue White Zinc |
6 |
112 |
90001-0816-0109 |
Hexagon Flange Bolt, M8 × 16, Blue White Zinc |
1 |
113 |
90408-0600-E1 |
Washer |
3 |
114 |
90001-0608-01 |
Hexagon Flange Bolt, M6 × 8, Blue White Zinc |
3 |
DRIVETRAIN DIAGRAM
DRIVETRAIN PART LIST
# |
Part Number |
Description |
Qty. |
1 |
23033000385000A |
Housing Connecting Shaft 2, 10 × 320, Black |
1 |
2 |
30313090015000 |
Hexagon Locking Nut, M12, White Zinc |
1 |
3 |
30512040015000 |
Flat Washer, 12, d14 × D24 × t2.6, Blue White Zinc |
1 |
4 |
23038000125000C |
Extension Spring, Ø8.5 × 44.9, 65Mn |
1 |
5 |
23035000395000A |
Friction Disc Bracket, T=2.5, 279 × 220.5, Black |
1 |
6 |
30413010015000 |
Elastic Circlips, 40, Black |
1 |
7 |
30613010075000 |
Bearing, 6203RS |
2 |
8 |
23033000395000A |
Large Synchronous Pulley Shaft, M12 × 44.2, Black |
1 |
9 |
30213010015000 |
Cross Recessed Countersunk Head Screw, M5 × 12, Blue White Zinc |
6 |
10 |
23032000795000A |
Large Synchronous Pulley Side Plate, 197 × 8 |
1 |
11 |
23034000505000A |
Large Synchronous Pulley, 197 × 21 |
1 |
12 |
30323060035000 |
Flange Locking Nut, M8, Hexagon, Blue White Zinc |
7 |
13 |
30133020035000 |
Flange Triangle Self-tapping Screw, M8 × 16, White Zinc |
8 |
14 |
23052000205000A |
Bearing Support, T=1.5, White Zinc |
4 |
15 |
30313090035000 |
Hexagon Locking Nut, M6, Blue White Zinc |
6 |
16 |
23052000105000A |
Pressing Plate, Bearing, T=1.5 mm |
2 |
17 |
A26800409101 |
Bearing, Ø25.4 × Ø52 × 15 |
2 |
18 |
23033000485000A |
Flange Triangle Self-tapping Screw, M6 × 16, White Zinc |
14 |
19 |
3061301012 |
Bearing, Ø12 × Ø28 × 7 |
4 |
20 |
23035000290027B |
Housing Assembly, 355 × 285 × 269 |
1 |
21 |
23031000210001A |
Shift Fork Rod Bushing, PA6+GF30 |
2 |
22 |
23032000655000A |
Gear Shift Fork Assembly, 267.5 × 134, White Zinc |
1 |
23 |
23093000055000A |
R Type Plug Pin, 2 × 26.2 × 7.9, White Zinc |
1 |
24 |
30813010025000 |
Open Pin, 2 × 20,White Zinc |
1 |
25 |
23032000590027A |
Housing Fixed Plate, 282 × 85 |
1 |
26 |
23041000040001A |
Waterproof Sheet, PA6+GF30, Black |
1 |
# |
Part Number |
Description |
Qty. |
27 |
23032000615000B |
Speed Adjustment Cable Support, T=3, 146.4 × 45.5 |
1 |
28 |
A26800307801 |
Self-tapping Locking Screw, Trigonodont, M6 × 12, Blue White Zinc |
2 |
29 |
23061000470001A |
Shift Fork Steering Unit, PA6+GF30 |
1 |
30 |
23041000520301A |
Shift Fork Cover, HDPE |
1 |
31 |
22698000065000A |
B Pin, White Zinc |
1 |
32 |
23032000510027A |
Big Bottom Plate, 6 × 280 × 188 |
1 |
33 |
23063000455000A |
Gear Box Locking Lever, 10 × 280, Zinc, Blue White |
1 |
34 |
2306200104A |
Wheel Shaft Bushing Assembly, 180 × 25 |
1 |
35 |
23013000105000A |
GT Differential Mechanism |
1 |
36 |
2301300007A |
Wheel Shaft, 591.4 × Ø17 |
1 |
37 |
30913050015000 |
Hexagon Flange Bolt, M6 × 12, Blue White Zinc |
6 |
38 |
31119010015000 |
Chain, 085-1-32 |
1 |
39 |
23065000015000B |
Sprocket Shaft Welded Assembly |
1 |
40 |
23033000365000B |
Wheeled Six Party Shaft, 19 × 323, 40Cr, Black |
1 |
41 |
30823040015000 |
Elastic Column Pin, 3 × 30, Black |
2 |
42 |
30423010065000 |
Shaft Elastic Circlip, 35, Black |
1 |
43 |
2303200062A |
Shifting Fork Riveting, 101 × 75 × 17 |
1 |
44 |
A26800600601 |
Hexagon Bolt, M8 x 22, Black Zinc |
3 |
45 |
23032000965000B |
Wheeled Six Party Sleeve, 35 × 42 |
1 |
46 |
23032000665000A |
Friction Wheel Clamp, T=2, 136.5 × 10.2, White Zinc |
2 |
47 |
23036000225000A |
Friction Wheel Rubber Ring, 147 × 17.2 |
1 |
48 |
23068000315000A |
Driving Cable |
1 |
49 |
2306800008B |
Speed Adjustment Cable |
1 |
50 |
2306800033A |
Speed Adjustment Cable, 760 mm |
1 |
51 |
23068000305000A |
Auger Cable |
1 |

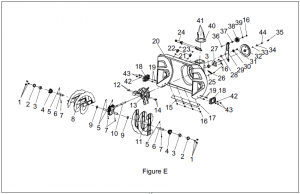

AUGER PART DIAGRAM
AUGER PART LIST
# |
Part Number |
Description |
Qty. |
1 |
30913070185000 |
Hexagon Flange Bolt, M8 × 20, Blue White Zinc |
6 |
2 |
2309100006A |
Spherical Bearing Sheath |
2 |
3 |
30693010055000 |
Outer Spherical Ball Bearing, 47 × 20 × 31 |
3 |
4 |
2309400003A |
Spherical Bearing Support |
2 |
5 |
23093000195000B |
B Pin, White Zinc |
4 |
6 |
23053000245000A |
Auger Connecting Shaft, 100 × 25.4, Black |
2 |
7 |
23053000055000A |
Shear Pin, Ø8 × 42.5, Blue White Zinc |
4 |
8 |
23055000190243A |
Right Auger Assembly, 24″ |
1 |
9 |
23052000215000A |
Auger Shaft Washer, 25.6 × 40 × 2 |
2 |
10 |
2300200033 |
Worm Gear Box Assembly |
1 |
11 |
23055000180243A |
Left Auger Assembly, 24″ |
1 |
12 |
30313030015000 |
Hexagon Locking Nut, M6, Black Zinc |
2 |
13 |
23055000170243B |
Fan Impeller Assembly, 35# |
1 |
14 |
30223010055000 |
Hexagon Socket Head Cap Screw, M6 × 40, Black Zinc |
2 |
15 |
30913090015000 |
Half-round Head Square Neck Bolt, M8 × 16, Blue White Zinc |
4 |
16 |
30323060035000 |
Flange Locking Nut, M8, Hexagon, Blue White Zinc |
9 |
17 |
2303200141A |
Snow Shovel Plate, 24″ |
1 |
18 |
23041000150243A |
Skid Shoes |
2 |
19 |
30913090045000 |
Half-round Head Square Neck Bolt, M8 × 25, Blue White Zinc |
4 |
20 |
23035000040027B |
Auger Housing Assembly, 24″ |
1 |
21 |
30323060015000 |
Flange Locking Nut, M6, All Metal Hexagon, Blue White Zinc |
2 |
22 |
23092000075000A |
Chute Tool Bracket, THK=1.2, 39.2 × 30.4 × 13, White Zinc |
2 |
23 |
30913090035000 |
Half-round Head Square Neck Bolt, M6 × 16, Blue White Zinc |
2 |
24 |
2304100024A |
Chute Tool |
1 |
# |
Part Number |
Description |
Qty. |
25 |
2303300002A |
Bushing, Ø8 × Ø12 × 7, White Zinc |
1 |
26 |
2303800001A |
Tension Spring, Big Tension Pulley, White Zinc |
1 |
27 |
23052000125000B |
Pressing Plate, Bearing, THK=2, Ø95 × 8.5, White Zinc |
1 |
28 |
23032000675000A |
Bushing, 10.5 × 35 × 1, Large Tension Board, White Zinc |
1 |
29 |
23032000635000A |
Large Tension Board, 313.3 × 40, White Zinc |
1 |
30 |
23034000535000A |
Bushing, 35 × 6.1, Large Tension Board |
1 |
31 |
A26800501201 |
Hexagon Locking Nut, M10, Blue White Zinc |
1 |
32 |
23035000055000A |
Big Auger Pulley, 14 × 189.2 × 21.5, Black |
1 |
33 |
31013010015000 |
Flat Key, C6 × 20, Black |
1 |
34 |
23032000335000A |
Thickened Big Washer, Ø8.2 × Ø30 × 3.7, White Zinc |
1 |
35 |
30913040115000 |
Hexagon Bolt, M8 × 25, Blue White Zinc |
1 |
36 |
30933010015000 |
Small Carriage Bolt, M8 × 40, Blue White Zinc |
1 |
37 |
23034000555000A |
Sheath, Large Tension Wheel |
1 |
38 |
23032000105000C |
Large Tension Pulley, Ø66.5 × 36.2, THK=1.5 |
1 |
39 |
23034000545000A |
Sheath (Thin), Large Tension Wheel, 20 × 6.5 |
1 |
40 |
23071000230001A |
Discharge Chute Antifriction Mat, Black |
1 |
41 |
30733010025000 |
Self-plugging Rivet, 4 × 15 |
4 |
42 |
30512050025000 |
Big Washer, 8, Blue White Zinc |
4 |
43 |
3031309010 |
Hexagon Locking Nut, M8, White Zinc |
4 |
44 |
3052301002 |
Spring Washer, 8, Black Zinc |
1 |
CHUTE DIAGRAM
CHUTE PART LIST
# |
Part Number |
Description |
Qty. |
1 |
23075000210027A |
Chute Assembly, 453 × 167 × 137, Cool Gray |
1 |
2 |
3073301003 |
Self-plugging Rivet, 4 × 10 |
7 |
3 |
23076000105000A |
Chute Rubber |
1 |
4 |
23092000205000A |
Hinge, 85 × 22, White Zinc |
1 |
5 |
23075000020027A |
Discharge Chute Deflector |
1 |
6 |
23068000185000A |
Pressing Spring, Ø1.5 |
1 |
7 |
23073000145000A |
Positioning Rod, Ø8, White Zinc |
1 |
8 |
23072000105000A |
Guy Wire Plate 1, T=3 mm, White Zinc |
1 |
9 |
30333020025000 |
Cap Nut, M5, Blue White Zinc |
1 |
10 |
23075000200265B |
Chute Support Arm, 493 × 332 × 43 |
1 |
11 |
30913040175000 |
Hexagon Bolt, M10 × 40 |
1 |
12 |
23071000240001A |
Chute Pivot, PA6+GF30 |
1 |
13 |
30823040035000 |
Elastic Column Pin, 1.5 × 16, Black |
1 |
14 |
23072000140265B |
Chute Pivot Cover, T=2.5, 181.5 × 136.5 × 118.9, Black |
1 |
15 |
23073000165000A |
Chute Rotating Cable Support Rod, 208 × 58, White Zinc |
1 |
16 |
30512050045000 |
Big Washer, Ø10, Blue White Zinc |
2 |
17 |
30313090085000 |
Hexagon Locking Nut, M10, Blue White Zinc |
2 |
18 |
2306800007A |
Discharge Chute Deflector Cable |
1 |
19 |
23032000755000A |
Chute Rotating Cable, 1203 mm |
2 |
HANDLE ASSEMBL Y DIAGRAM
HANDLE ASSEMBLY PART LIST
# |
Part Number |
Description |
Qty. |
1 |
30113010265000 |
Self-tapping Screw, ST4.2 × 8, Black Zinc |
11 |
2 |
23041000090243A |
Right Decorative Ring, ABS750SW |
1 |
3 |
23041000060027A |
Light Panel |
1 |
4 |
2308900011A |
LED Light Assembly, Right |
1 |
5 |
30113010255000 |
Self-tapping Screw, ST4.2 × 16, Black Zinc |
6 |
6 |
2304100022A |
Badge, Chrome |
1 |
7 |
2308900010A |
LED Light Assembly, Left |
1 |
8 |
23041000080243A |
Left Decorative Ring |
1 |
9 |
2308100003A |
Panel Wiring Harness, 0.75mm2 × 100 |
1 |
10 |
2281100002B |
Cable Pressing Plate |
2 |
11 |
30113010095000 |
Self-tapping Screw, ST4.2 × 12, Black Zinc |
14 |
12 |
30313090025000 |
Hexagon Locking Nut, M8, White Zinc |
7 |
13 |
23065000260265A |
Panel Fixed Plate Assembly, 463 × 166 × 210 |
1 |
14 |
30913090095000 |
Half-round Head Square Neck Bolt, M8 × 40, Blue White Zinc |
4 |
15 |
23062000830265A |
Front Adjustment Plate,165 × 35 |
1 |
16 |
A26800104801 |
Self-tapping Screw, ST5 × 30, Blue White Zinc |
2 |
17 |
30512050035000 |
Big Washer, 5, Blue White Zinc |
2 |
18 |
30113010125000 |
Self-tapping Screw, ST4.8 × 12, Black Zinc |
4 |
19 |
23041000070027A |
Top Panel |
1 |
20 |
20114000605000A |
Rocker Switch, 125V, 20A |
1 |
21 |
23093000195000B |
B Pin, White Zinc |
8 |
22 |
30512050025000 |
Big Washer, 8, Blue White Zinc |
3 |
23 |
23068000135000B |
Gear Pressing Spring, 14.5 × 33.75, White Zinc |
3 |
24 |
23063000525000A |
Left Adjustment Lever, T=3 |
1 |
25 |
23066000135000A |
Handle, 41 × 41 × 63, Black |
3 |
26 |
20313000995000A |
Hexagon Flange Bolt, M8 × 50, Blue White Zinc |
3 |
27 |
23032001045000A |
Front Adjustment Lever, T=3 |
1 |
28 |
2306200087A |
Right Adjustment Lever |
1 |
29 |
23062000800265B |
Right Upper Handle, 25 × 2.5 |
1 |
# |
Part Number |
Description |
Qty. |
30 |
23062000790265B |
Left Upper Handle, 25 × 2.5 |
1 |
31 |
30313090055000 |
Hexagon Locking Nut, M5, Blue White Zinc |
2 |
32 |
23062000820265A |
Right Trigger, T=2, 220 × 89.5 × 42.5, Black |
1 |
33 |
23063000075000A |
Trigger Bolt, M5 × 45, White Zinc |
2 |
34 |
30913070135000 |
Hexagon Flange Bolt, M6 × 55, Blue White Zinc |
2 |
35 |
30423010095000 |
Shaft Elastic Circlip, 6, Black |
1 |
36 |
23068000295000A |
Self-locking Tension Spring, 1 × 28, White Zinc |
1 |
37 |
23061000480301A |
Handle Support Unit |
2 |
38 |
30313090035000 |
Hexagon Locking Nut, M6, Blue White Zinc |
2 |
39 |
23065000275000A |
Self-locking Plate Assembly, Right Trigger, 62.5 × 36 × 30, Black |
1 |
40 |
23063000515000A |
Self-locking Fixed Pin Shaft, 6 × 33, Black |
1 |
41 |
23068000325000A |
Self-locking Cable, 745 mm |
1 |
42 |
23069000105015A |
Handle, Heated, Ø34.5 × 132 |
2 |
43 |
23062000810265A |
Left Trigger, T=2, 220 × 89.5 × 42.5, Black |
1 |
44 |
23053000055000A |
Shear Pin, Ø8 × 42.5, Blue White Zinc |
4 |
45 |
2306600002 |
Silicon Tube, Ø9 × Ø12 |
2 |
WIRING DIAGRAM
[xyz-ips snippet=”download-snippet”]
