ZOHD MK III Alpha strike User Guide

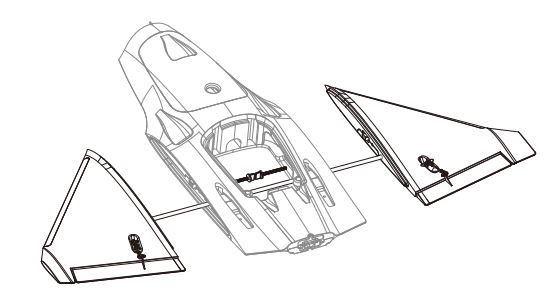

Mount the main wings with the provided thumbscrews. Don’t forget to place the main spar first.
The vertical fins are removable and can be fixed by the 2 provided thumbscrews.
You can add the nose of your choice using the provided screw.

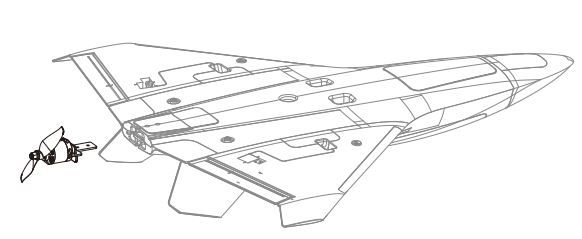

You will fix the motor seat with the 2 provided screws. Be sure is aligned and firmly tighten.

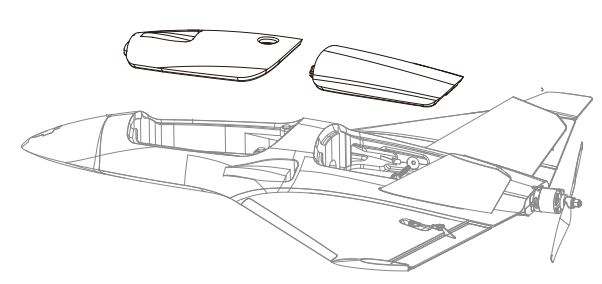

Once you placed all your FPV gear, be sure both hatches fit flushed against the fuse.
Attach the Teflon skin protection for landings according to the figure.
Empty weight (PNP): 441gMin. recommended speed: 25-33km/hMax. Speed (with default power combo): 185+km/hCruise speed (with default power combo): 86km/h @ 5AMax Speed tested without structural failure: 192km/h with no structural damage or twist on elevonsMax recommended takeoff weight: 900 grams (with default power combo)Reflex on elevons: 3mm at levelRecommended max. Throws: 10-12mm depending on your style Recommended expo for manual: 55-75 depending your style/skills
This model requires experience to setup and fly. It’s by no means designed for beginners. If you’re starting in the hobby, please check some of our other products that will be more suitable for beginners. This is a powerful unit considering the size and weight and will require you to have strong orientation abilities, specially flying line of sight. We also recommend you to fly this unit with stabilization (flight controller) unless you’re extremely skilled with the sticks. Finally consider adding lead weights to achieve a perfect CG balance. Enjoy!
