ZOOOK Bluetooth Neckband Stereo Headset Mic User Manual

 Blue

ZB-JAZZ CLAWSBluetooth Neckband Stereo Headset with Mic

INTRODUCTION

Enjoy the power of wireless connectivity coupled with pristine sound quality with JAZZ CLAWS, a Bluetooth® 4.1 Bluetooth Neckband Stereo Headset with Mic. Answer Calls or listen to music, all on the go with the touch of a button. Your music has never sounded better and your music will come to life. Just plug in the Claws and Plug out from the world of worry.



www.zoook.com

PACKAGING CONTENT

  • 1 X JAZZ CLAWS Bluetooth Neckband Stereo Headset with Mic
  • 3 x Pair of Eartips (S,M,L)
  • 1 x Micro USB Charging Cable
  • 1 x User Guide
  • Certificate of Authenticity

SPECIFICATION:

  • Bluetooth® Version: CSR8635 4.1
  • Bluetooth® Profile: HFP, HSP, A2DP, AVRCP
  • Input Power: 5V/1A
  • Frequency range: 2.4026 GHz – 2.480 GHz
  • Frequency response: 20Hz-20KHz
  • Battery Capacity: 220mAh
  • Charging time: 3.5Hours*
  • Playback time: 18-20Hours*
  • Operating Distance: 10m
  • Microphone Built-in

COMPATIBILITY:

JAZZ CLAWS may be paired as a headset to any compatible Bluetooth enabled devices.

PRECAUTIONS:

Please read all safety instructions and warnings thoroughly before using this product. Improper use of this product may result in damage to this or attached products. To keep the product working at its optimum performance, never use it in the following conditions:

  1. Moist or underwater conditions.
  2. Conditions near the heater or high-temperature areas.
  3. Conditions with direct sunshine.
  4. Never dismantle the product without due permission, else this may nullify warranty

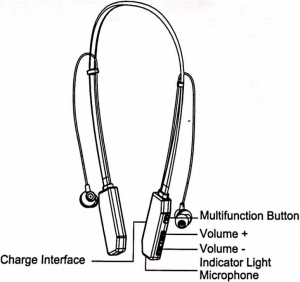

APPEARANCE 8: INTERFACE DESCRIPTION:

OPERATION INSTRUCTIONS:

1. Turning the JAZZ CLAWS On/Off
  • Press & Hold the MFB for 3 seconds until the LED flashes. You will hear a tone indicating the power is on.
  • Press & Hold the MFB for 3 seconds until the LED flashes. You will also hear a tone indicating power is off.
2. Pairing JAZZ CLAWS with your Bluetooth device

You are required to pair JAZZ CLAWS with your smartphone once before using it.

  • Press and hold the Muiti-function button for 5 seconds until the blue LED and red LED start flashing alternately to enter pairing mode.
  • Activate Bluetooth on your mobile phone.
  • Set your phone to discover ‘ZB-JAZZ CLAWS’ and follow the instructions.
  • if your phone asks for a passkey or PIN code, confirm with ‘0000’ (4 zeroes).
  • When the phone and Rocker iGear are paired and connected, blue LED flashes twice.
3. Pairing JAZZ CLAWS with a second Bluetooth device (Multipoint Pairing):

Follow the above instructions to pair the JAZZ CLAWS with the first device and then restart the JAZZ CLAWS by turning power off and then on.

  • Press and hold the Multi-function button for 5 seconds until the blue LED and red LED start flashing alternately to enter pairing mode.
  • Activate Bluetooth on your second mobile phone.
  • Set your phone to discover “ZB-JAZZ CLAWS” and follow the instructions to pair with the second device. Once successfully connected, Re-enable Bluetooth on the first device.
  • Find “ZB-JAZZ CLAWS” on the first device and pair again.
  • Both bluetooth devices are connected now.
4. Answering a call:
  • With one phone connected

Short press Multi-Function button once to answer an incoming call.

With two phones connected
  • Short press Multi-Function button once to answer an incoming call.
  • When you are on first phone and a call is coming on the second phone, long press multi-function button to keep the first call on hold and answer the second call. Press the multi-function button once to end the second phone call and continue the first call.
  • Short press the Multifunction button once to end the first call and answer the second call.
5. Rejecting a call:

Press and hold the Multi-Function button for 2 seconds to reject a call.

6. Using the Last number Re-Dialing feature(Available only with one phone connected)

Short press Multi-Function button twice to re-dial the last dialed number.

7. Adjusting the volume of the headset and controlling music playback
  • Press and hold the volurne (+) button to increase the volume. Short press (+) to go to the next song.
  • Press and hold the volume (-) button to decrease the volume. Short press (-) to go to the previous song.
8. Play / Pause

Short Press the MFB button once to play and press again to pause the music.

9. Charging the JAZZ CLAWS

Charge using the Micro-USB cable.Connect the Micro-USB connector to the charging port of the JAZZ CLAWS to start charging the Bluetooth device.The LED is lit up in red while charging and LED powers-off when fully charged. iOS displays the remaining battery status.



Note: ZOOOK holds all rights to change product specifications and dimensions without any prior notice. For full range of ZOOOK products visit www.zoook.com
